CD214B-B340R
  • Share:

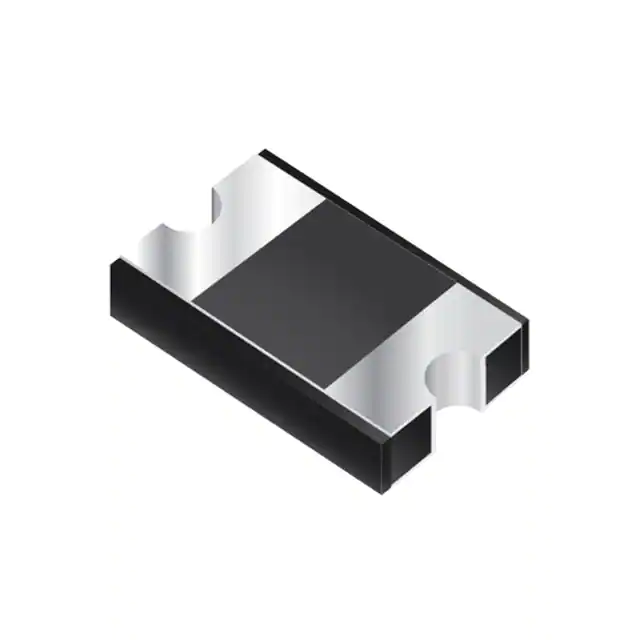

Bourns Inc. CD214B-B340R

Manufacturer No:
CD214B-B340R
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
CD214B-B340R Datasheet
ECAD Model:
-
Description:
DIO SBD VRRM 40V 3A SMB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):40 V
Current - Average Rectified (Io):3A
Voltage - Forward (Vf) (Max) @ If:500 mV @ 3 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:500 µA @ 40 V
Capacitance @ Vr, F:250pF @ 4V, 1MHz
Mounting Type:Surface Mount
Package / Case:2-SMD, No Lead
Supplier Device Package:2-SMD
Operating Temperature - Junction:-55°C ~ 125°C
0 Remaining View Similar

In Stock

$0.52
226

Please send RFQ , we will respond immediately.

Similar Products

Part Number CD214B-B340R CD214B-B360R   CD214C-B340R   CD214A-B340R   CD214B-B240R   CD214B-B320R
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active Active Active
Diode Type Schottky Schottky Schottky Schottky Schottky Schottky
Voltage - DC Reverse (Vr) (Max) 40 V 60 V 40 V 40 V 40 V 20 V
Current - Average Rectified (Io) 3A 3A 3A 3A 2A 3A
Voltage - Forward (Vf) (Max) @ If 500 mV @ 3 A 700 mV @ 3 A 500 mV @ 3 A 500 mV @ 3 A 500 mV @ 2 A 500 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io) Fast Recovery =< 500ns, > 200mA (Io) Fast Recovery =< 500ns, > 200mA (Io) Fast Recovery =< 500ns, > 200mA (Io) Fast Recovery =< 500ns, > 200mA (Io) Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) - - - - - -
Current - Reverse Leakage @ Vr 500 µA @ 40 V 500 µA @ 60 V 500 µA @ 40 V 500 µA @ 40 V 200 µA @ 40 V 500 µA @ 20 V
Capacitance @ Vr, F 250pF @ 4V, 1MHz 180pF @ 4V, 1MHz 180pF @ 4V, 1MHz 300pF @ 4V, 1MHz 115pF @ 4V, 1MHz 180pF @ 4V, 1MHz
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 2-SMD, No Lead 2-SMD, No Lead 2-SMD, No Lead 2-SMD, No Lead 2-SMD, No Lead 2-SMD, No Lead
Supplier Device Package 2-SMD 2-SMD 2-SMD 2-SMD 2-SMD 2-SMD
Operating Temperature - Junction -55°C ~ 125°C -55°C ~ 150°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C
