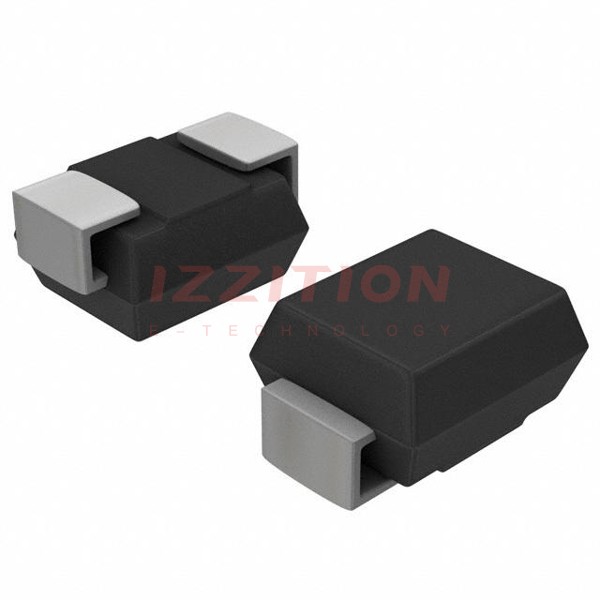

| Part Number | CD214B-B150LF | CD214B-B160LF | CD214B-B250LF | CD214B-B350LF | CD214A-B150LF | CD214B-B120LF | CD214B-B130LF | CD214B-B140LF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 50 V | 60 V | 50 V | 50 V | 50 V | 20 V | 30 V | 40 V |
| Current - Average Rectified (Io) | 1A | 1A | 2A | 3A | 1A | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 700 mV @ 1 A | 700 mV @ 1 A | 700 mV @ 2 A | 700 mV @ 3 A | 700 mV @ 1 A | 500 mV @ 1 A | 500 mV @ 1 A | 500 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 50 V | 500 µA @ 60 V | 500 µA @ 50 V | 500 µA @ 50 V | 500 µA @ 50 V | 500 µA @ 20 V | 500 µA @ 30 V | 500 µA @ 40 V |
| Capacitance @ Vr, F | 110pF @ 4V, 1MHz | 110pF @ 4V, 1MHz | 200pF @ 4V, 1MHz | 250pF @ 4V, 1MHz | 110pF @ 4V, 1MHz | 110pF @ 4V, 1MHz | 110pF @ 4V, 1MHz | 110pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AC, SMA | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | SMBJ (DO-214AA) | DO-214AA (SMB) | SMB (DO-214AA) | SMB (DO-214AA) | DO-214AC (SMA) | DO-214AA (SMB) | DO-214AA (SMB) | SMB (DO-214AA) |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
