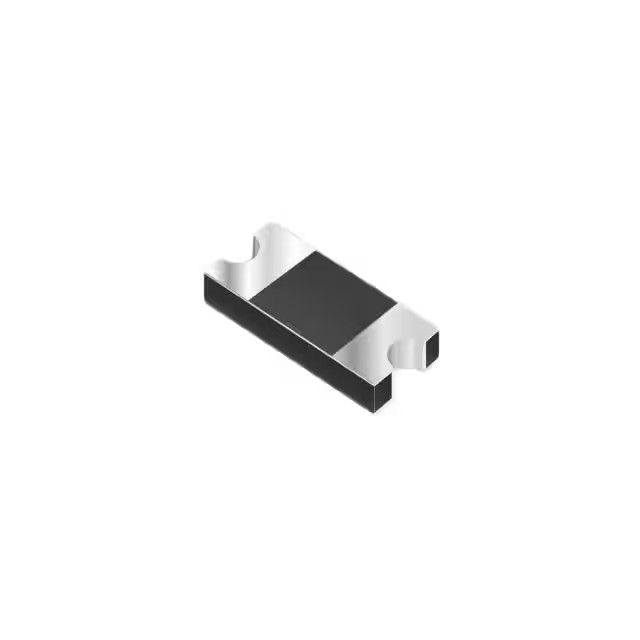

| Part Number | CD214A-R12000R | CD214A-R12000 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Obsolete |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 2000 V | 2000 V |
| Current - Average Rectified (Io) | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 2 V @ 1 A | 2 V @ 1 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - |
| Current - Reverse Leakage @ Vr | 50 µA @ 2 kV | 5 µA @ 2000 V |
| Capacitance @ Vr, F | 12pF @ 4V, 1MHz | 12pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | DO-214AC, SMA | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) | DO-214AC (SMA) |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C |
