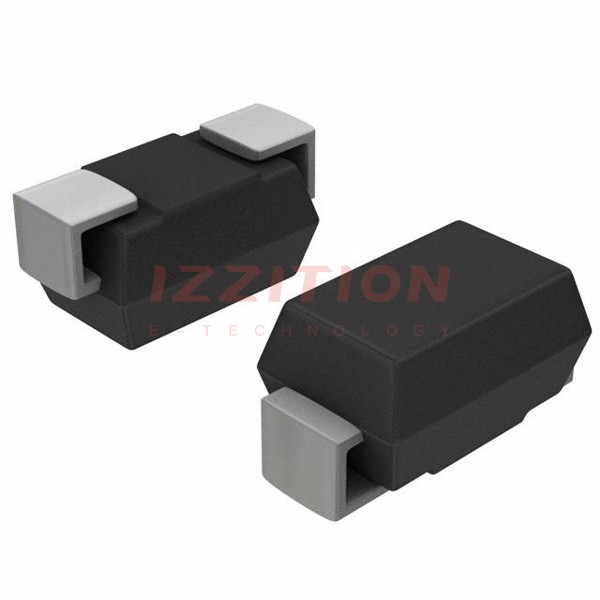

| Part Number | CD214A-R1100 | CD214A-R11000 | CD214A-R11100 | CD214A-R11200 | CD214A-R11600 | CD214A-R1200 | CD214A-R1400 | CD214A-R1600 | CD214A-R1800 | CD214A-F1100 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 1000 V | 1100 V | 1200 V | 1600 V | 200 V | 400 V | 600 V | 800 V | 100 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A | 1 V @ 1 A | 1.25 V @ 1 A | 1.25 V @ 1 A | 1.25 V @ 1 A | 1 V @ 1 A | 1 V @ 1 A | 1 V @ 1 A | 1 V @ 1 A | 950 mV @ 1 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - | - | - | - | 25 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V | 5 µA @ 1000 V | 5 µA @ 1100 V | 5 µA @ 1200 V | 5 µA @ 1600 V | 5 µA @ 200 V | 5 µA @ 400 V | 5 µA @ 600 V | 5 µA @ 800 V | 5 µA @ 100 V |
| Capacitance @ Vr, F | 12pF @ 4V, 1MHz | 12pF @ 4V, 1MHz | 12pF @ 4V, 1MHz | 12pF @ 4V, 1MHz | 12pF @ 4V, 1MHz | 12pF @ 4V, 1MHz | 12pF @ 4V, 1MHz | 12pF @ 4V, 1MHz | 12pF @ 4V, 1MHz | 10pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 150°C |
