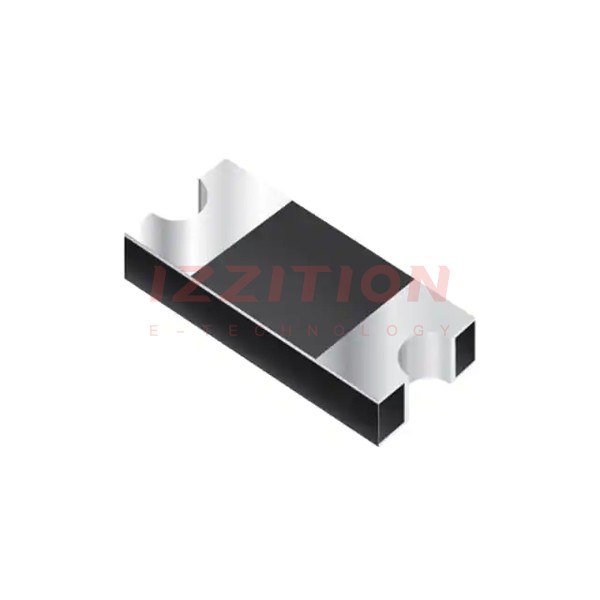

| Part Number | CD214A-B260R | CD214A-B360R | CD214B-B260R | CD214A-B160R | CD214A-B220R | CD214A-B240R |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V | 60 V | 60 V | 60 V | 20 V | 40 V |
| Current - Average Rectified (Io) | 2A | 3A | 2A | 1A | 2A | 2A |
| Voltage - Forward (Vf) (Max) @ If | 700 mV @ 2 A | 700 mV @ 3 A | 700 mV @ 2 A | 700 mV @ 1 A | 500 mV @ 2 A | 500 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 200 µA @ 60 V | 500 µA @ 60 V | 200 µA @ 60 V | 500 µA @ 60 V | 200 µA @ 20 V | 200 µA @ 40 V |
| Capacitance @ Vr, F | 115pF @ 4V, 1MHz | 250pF @ 4V, 1MHz | 115pF @ 4V, 1MHz | 110pF @ 4V, 1MHz | 115pF @ 4V, 1MHz | 115pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Supplier Device Package | 2-SMD | 2-SMD | 2-SMD | 2-SMD | 2-SMD | 2-SMD |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 150°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
