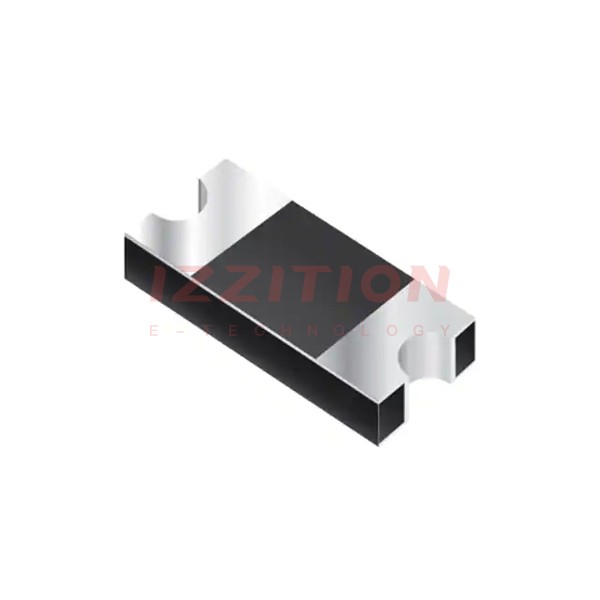

| Part Number | CD214A-B120LR | CD214A-B140LR | CD214A-B120R | CD214A-B220LR | CD214A-B320LR | CD214A-B120LF |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V | 40 V | 20 V | 20 V | 20 V | 20 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A | 2A | 3A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 380 mV @ 1 A | 380 mV @ 1 A | 500 mV @ 1 A | 400 mV @ 2 A | 420 mV @ 3 A | 500 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 1 mA @ 20 V | 1 mA @ 40 V | 200 µA @ 20 V | 1 mA @ 20 V | 1 mA @ 20 V | 500 µA @ 20 V |
| Capacitance @ Vr, F | 110pF @ 4V, 1MHz | 110pF @ 4V, 1MHz | 110pF @ 4V, 1MHz | 115pF @ 4V, 1MHz | 120pF @ 4V, 1MHz | 110pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | DO-214AC, SMA |
| Supplier Device Package | 2-SMD | 2-SMD | 2-SMD | 2-SMD | 2-SMD | DO-214AC (SMA) |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
