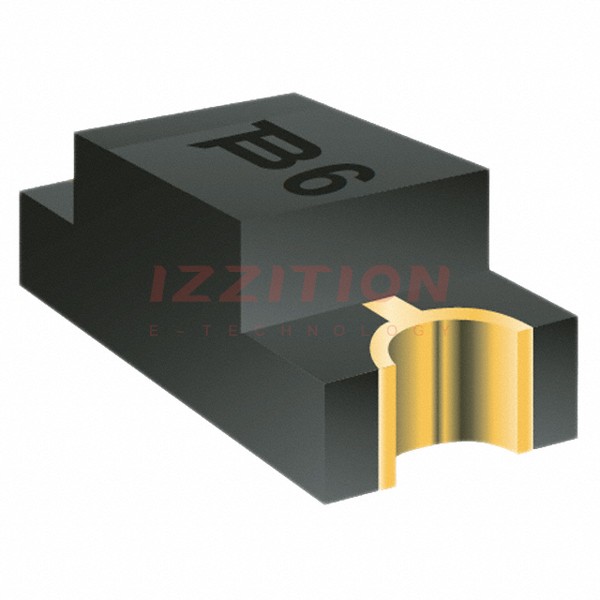

| Part Number | CD2010-B140 | CD2010-B160 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 60 V |
| Current - Average Rectified (Io) | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A | 580 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 40 V | 500 µA @ 60 V |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Chip, Concave Terminals | Chip, Concave Terminals |
| Supplier Device Package | 2010 | 2010 |
| Operating Temperature - Junction | -40°C ~ 125°C | 125°C (Max) |
