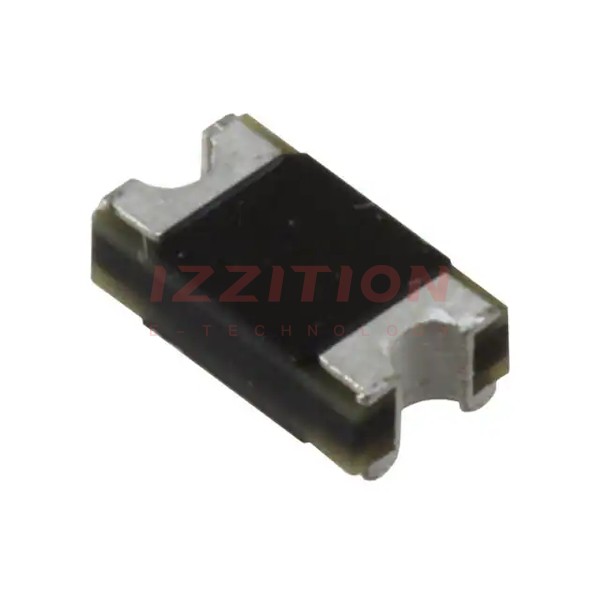

| Part Number | CD1408-F11000 | CD1408-R11000 | CD1408-FF11000 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000 V | 1000 V | 1000 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A | 1 V @ 1 A | 1.7 V @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 300 ns | 3 µs | 75 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V | 1 µA @ 1000 V | 5 µA @ 1000 V |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz | 12pF @ 4V, 1MHz | 10pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Chip, Concave Terminals | Chip, Concave Terminals | Chip, Concave Terminals |
| Supplier Device Package | 1408 | 1408 | 1408 |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
