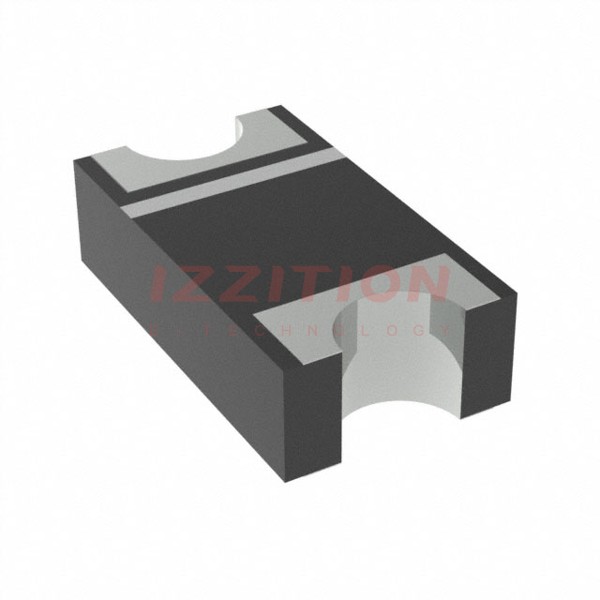

| Part Number | CD123D-B140LR | CD123D-B140R |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V |
| Current - Average Rectified (Io) | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 380 mV @ 1 A | 500 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - |
| Current - Reverse Leakage @ Vr | 1 mA @ 40 V | 200 µA @ 40 V |
| Capacitance @ Vr, F | 115pF @ 4V, 1MHz | 110pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Chip, Concave Terminals | Chip, Concave Terminals |
| Supplier Device Package | 123D | 123D |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C |
