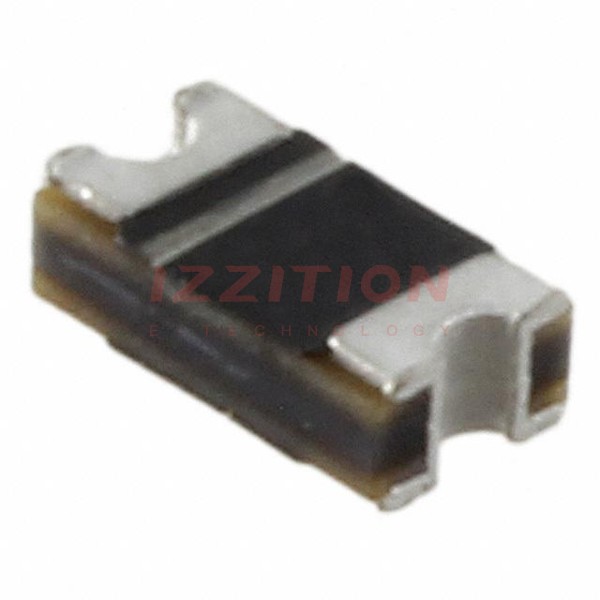

| Part Number | CD1206-B220 | CD1206-B240 | CD1206-B260 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V | 40 V | 60 V |
| Current - Average Rectified (Io) | 2A | 2A | 2A |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 2 A | 500 mV @ 2 A | 700 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 20 V | 500 µA @ 40 V | 500 µA @ 60 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Chip, Concave Terminals | Chip, Concave Terminals | Chip, Concave Terminals |
| Supplier Device Package | 1206 | 1206 | 1206 |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
