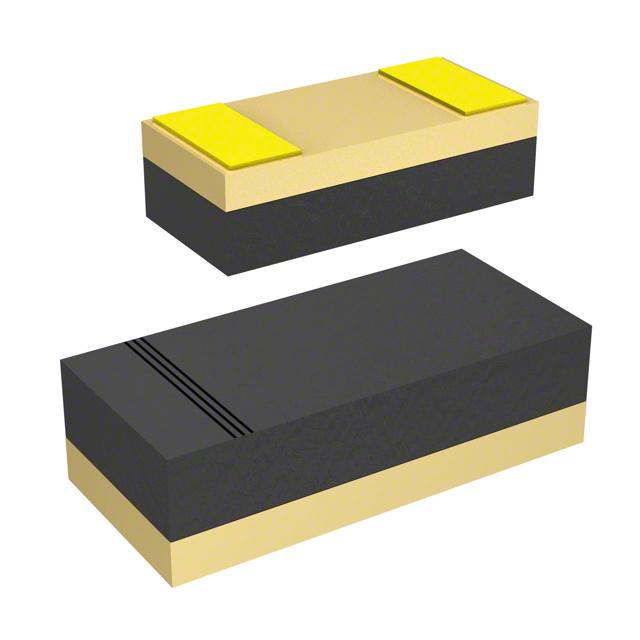

| Part Number | CD1005-Z10 | CD1005-Z11 | CD1005-Z12 | CD1005-Z13 | CD1005-Z15 | CD1005-Z16 | CD1005-Z18 | CD1005-Z20 | CD1005-Z30 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 10 V | 11 V | 12 V | 13 V | 15 V | 16 V | 18 V | 20 V | 30 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW |
| Impedance (Max) (Zzt) | 15 Ohms | 20 Ohms | 20 Ohms | 25 Ohms | 30 Ohms | 40 Ohms | 50 Ohms | 50 Ohms | 80 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 7.5 V | 100 nA @ 8.5 V | 100 nA @ 9 V | 100 nA @ 10 V | 100 nA @ 11 V | 100 nA @ 12 V | 100 nA @ 14 V | 100 nA @ 15 V | 100 nA @ 23 V |
| Voltage - Forward (Vf) (Max) @ If | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1005 (2512 Metric) | 1005 (2512 Metric) | 1005 (2512 Metric) | 1005 (2512 Metric) | 1005 (2512 Metric) | 1005 (2512 Metric) | 1005 (2512 Metric) | 1005 (2512 Metric) | 1005 (2512 Metric) |
| Supplier Device Package | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
