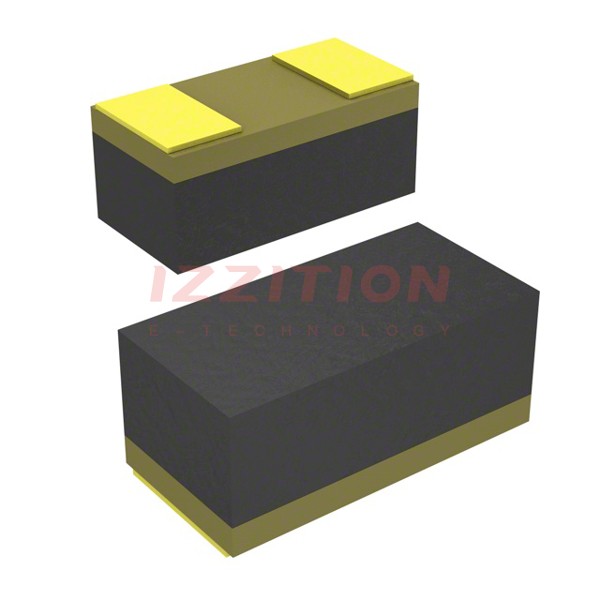

| Part Number | CD1005-B0130L | CD1005-B0140L | CD1005-B0130 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Active |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 40 V | 30 V |
| Current - Average Rectified (Io) | 100mA | 100mA | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 440 mV @ 100 mA | 550 mV @ 100 mA | 440 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 30 µA @ 30 V | 30 µA @ 10 V | 30 µA @ 30 V |
| Capacitance @ Vr, F | 9pF @ 10V, 1MHz | 9pF @ 10V, 1MHz | 9pF @ 10V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1005 (2512 Metric) | 1005 (2512 Metric) | 1005 (2512 Metric) |
| Supplier Device Package | 1005 | 1005 | 1005 |
| Operating Temperature - Junction | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
