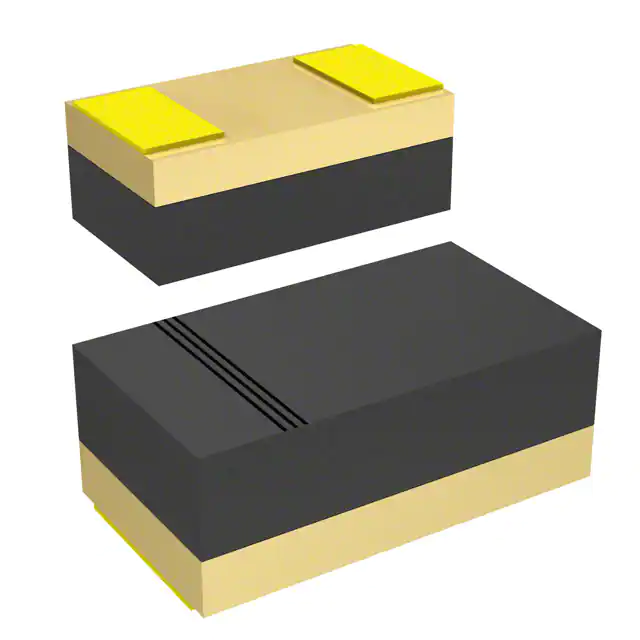

| Part Number | CD0603-Z22 | CD0603-Z24 | CD0603-Z27 | CD0603-Z2V2 | CD0603-Z12 | CD0603-Z2 | CD0603-Z20 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 22 V | 24 V | 27 V | 2.2 V | 12 V | 2 V | 20 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 150 mW | 150 mW | 150 mW | 150 mW | 150 mW | 150 mW | 150 mW |
| Impedance (Max) (Zzt) | 55 Ohms | 80 Ohms | 80 Ohms | 100 Ohms | 20 Ohms | 100 Ohms | 50 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 17 V | 100 nA @ 18 V | 100 nA @ 20 V | 100 µA @ 1 V | 100 nA @ 9 V | 100 µA @ 1 V | 100 nA @ 15 V |
| Voltage - Forward (Vf) (Max) @ If | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 |
