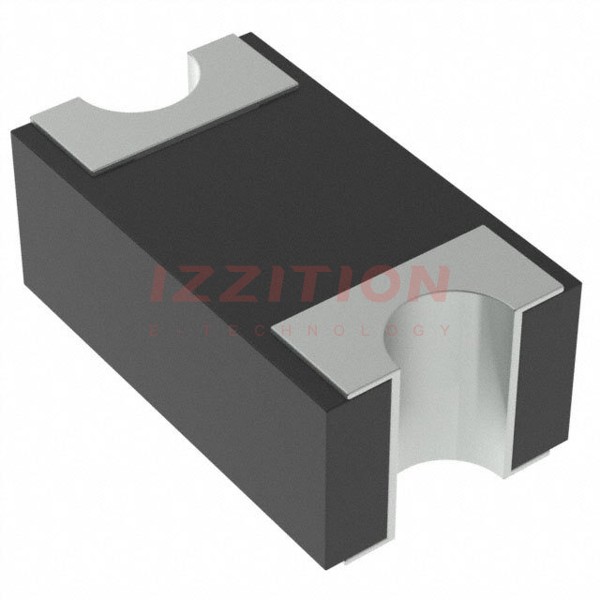

| Part Number | CD0603-B0340R | CD0603-B0140R | CD0603-B0240R |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Obsolete | Active |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V | 40 V |
| Current - Average Rectified (Io) | 300mA | 100mA | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 200 mA | 450 mV @ 10 mA | 550 mV @ 200 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 50 µA @ 10 V | 1 µA @ 10 V | 1 µA @ 10 V |
| Capacitance @ Vr, F | 35pF @ 4V, 1MHz | 9pF @ 10V, 1MHz | 35pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 | 0603 (1608 Metric) |
| Operating Temperature - Junction | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
