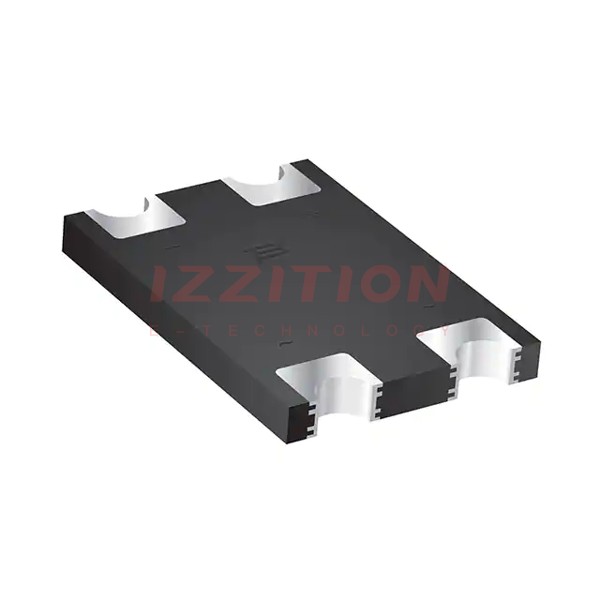

| Part Number | CD-HD2006 | CD-HD2006L | CD-HD006 | CD-HD2004 |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Diode Type | Single Phase | Single Phase | Single Phase | Single Phase |
| Technology | Schottky | Schottky | Schottky | Schottky |
| Voltage - Peak Reverse (Max) | 60 V | 60 V | 60 V | 40 V |
| Current - Average Rectified (Io) | 2 A | 2 A | 1 A | 2 A |
| Voltage - Forward (Vf) (Max) @ If | 700 mV @ 2 A | 550 mV @ 2 A | 700 mV @ 1 A | 500 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 60 V | 200 µA @ 60 V | 200 µA @ 60 V | 200 µA @ 40 V |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TC) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Chip, Concave Terminals | Chip, Concave Terminals | Chip, Concave Terminals | Chip, Concave Terminals |
| Supplier Device Package | - | - | - | - |
