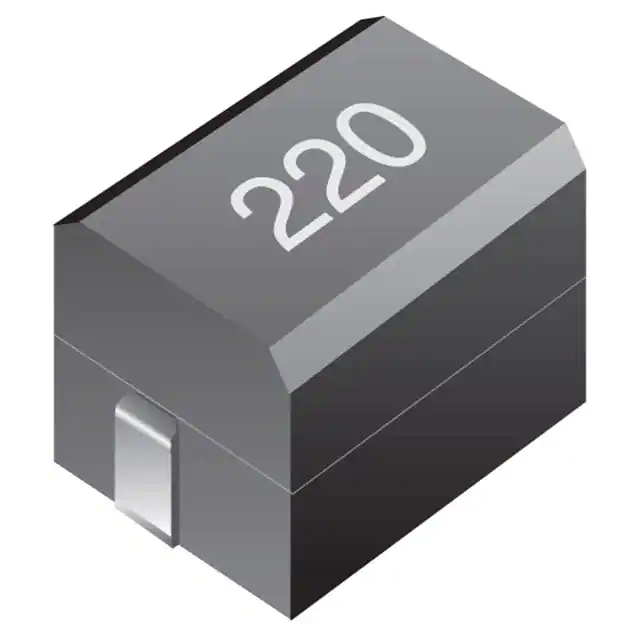

| Part Number | CC453232A-4R7KL | CC453232-4R7KL |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | - | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 4.7 µH | 4.7 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 1.3 A | 650 mA |
| Current - Saturation (Isat) | 1.05A | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 260mOhm Max | 270mOhm Max |
| Q @ Freq | 10 @ 7.96MHz | 10 @ 7.96MHz |
| Frequency - Self Resonant | 30MHz | 35MHz |
| Ratings | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric) | 1812 (4532 Metric) |
| Supplier Device Package | 1812 | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) | 0.134" (3.40mm) |
