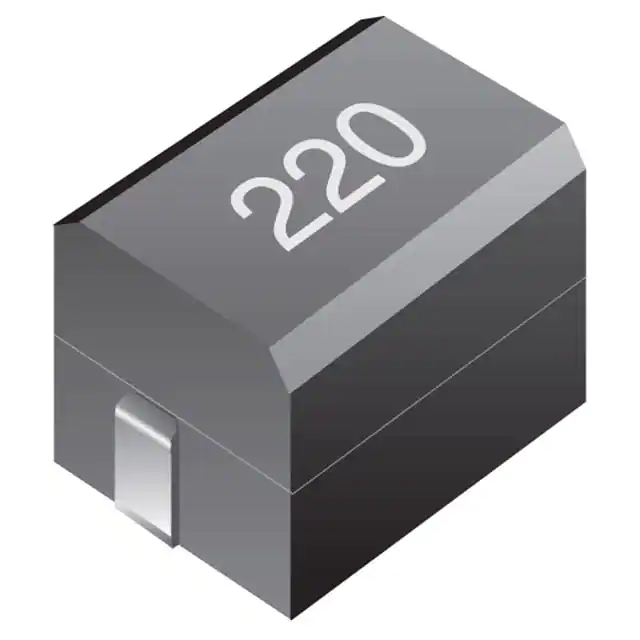

| Part Number | CC453232A-101KL | CC453232A-151KL | CC453232A-102KL | CC453232-101KL | CC453232A-100KL |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | - | - | - | Drum Core, Wirewound | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 150 µH | 1 mH | 100 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 280 mA | 220 mA | 90 mA | 180 mA | 1 A |
| Current - Saturation (Isat) | 220mA | 190mA | 80mA | - | 700mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 4Ohm Max | 6Ohm Max | 40Ohm Max | 4Ohm Max | 480mOhm Max |
| Q @ Freq | 30 @ 796kHz | 30 @ 796kHz | 20 @ 252kHz | 20 @ 796kHz | 20 @ 2.52MHz |
| Frequency - Self Resonant | 5.5MHz | 4.5MHz | 2MHz | 8MHz | 20MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 125°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 796 kHz | 796 kHz | 252 kHz | 796 kHz | 2.52 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) |
| Supplier Device Package | 1812 | 1812 | 1812 | 1812 | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) |
