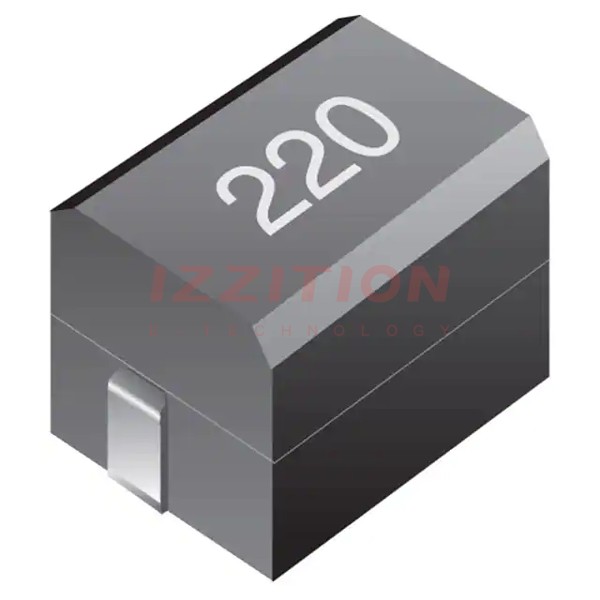

| Part Number | CC453232A-100KL | CC453232A-1R0KL | CC453232A-101KL | CC453232A-150KL | CC453232A-102KL | CC453232-100KL |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 1 µH | 100 µH | 15 µH | 1 mH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1 A | 2.3 A | 280 mA | 750 mA | 90 mA | 550 mA |
| Current - Saturation (Isat) | 700mA | 2.25A | 220mA | 600mA | 80mA | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 480mOhm Max | 100mOhm Max | 4Ohm Max | 610mOhm Max | 40Ohm Max | 500mOhm Max |
| Q @ Freq | 20 @ 2.52MHz | 10 @ 7.96MHz | 30 @ 796kHz | 20 @ 2.52MHz | 20 @ 252kHz | 10 @ 2.52MHz |
| Frequency - Self Resonant | 20MHz | 180MHz | 5.5MHz | 14MHz | 2MHz | 22MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 2.52 MHz | 7.96 MHz | 796 kHz | 2.52 MHz | 252 kHz | 2.52 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) |
| Supplier Device Package | 1812 | 1812 | 1812 | 1812 | 1812 | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) |
