Please send RFQ , we will respond immediately.

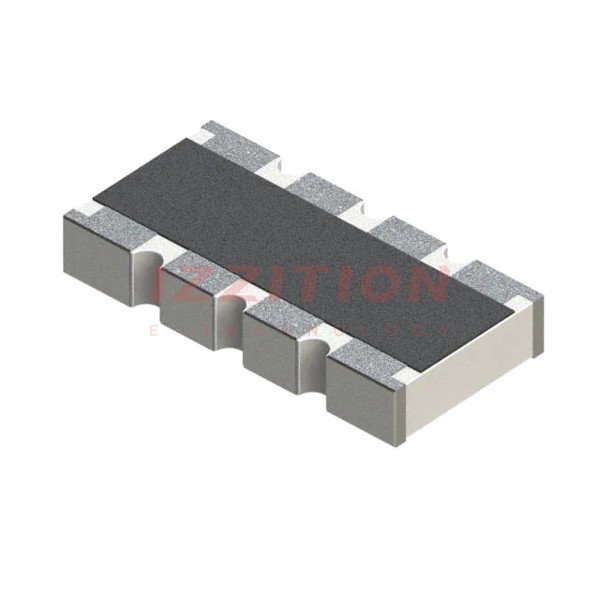

| Part Number | CAY16-5621F4LF | CAY16-5622F4LF | CAY16-5620F4LF |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 5.62k | 56.2k | 562 |
| Tolerance | ±1% | ±1% | ±1% |
| Number of Resistors | 4 | 4 | 4 |
| Resistor Matching Ratio | - | - | - |
| Resistor-Ratio-Drift | - | - | - |
| Number of Pins | 8 | 8 | 8 |
| Power Per Element | 62.5mW | 62.5mW | 62.5mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), Convex, Long Side Terminals | 1206 (3216 Metric), Convex, Long Side Terminals | 1206 (3216 Metric), Convex, Long Side Terminals |
| Supplier Device Package | 1206 | 1206 | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
