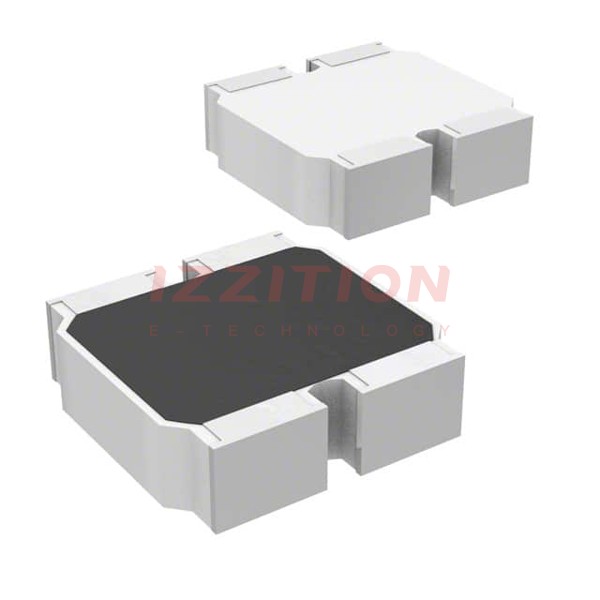

| Part Number | CAY16-000J2LF | CAY16-000J4LF | CAY16-100J2LF | CAY16-000J8LF |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Circuit Type | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 0.0 | 0.0 | 10 | 0.0 |
| Tolerance | Jumper | Jumper | ±5% | Jumper |
| Number of Resistors | 2 | 4 | 2 | 8 |
| Resistor Matching Ratio | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - |
| Number of Pins | 4 | 8 | 4 | 16 |
| Power Per Element | 62.5mW | 62.5mW | 62.5mW | 62.5mW |
| Temperature Coefficient | - | - | ±200ppm/°C | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0606, Convex | 1206 (3216 Metric), Convex, Long Side Terminals | 0606, Convex | 1506, Convex, Long Side Terminals |
| Supplier Device Package | 0606 | 1206 | 0606 | 1506 |
| Size / Dimension | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.150" L x 0.063" W (3.80mm x 1.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
