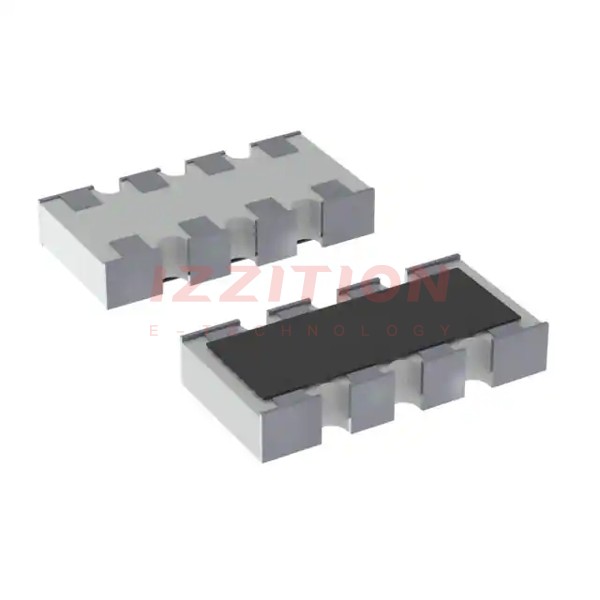

| Part Number | CAY10-472J4AS | CAY10-473J4AS | CAY10A-472J4AS |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Active |
| Circuit Type | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 4.7k | 47k | 4.7k |
| Tolerance | ±5% | ±5% | ±5% |
| Number of Resistors | 4 | 4 | 4 |
| Resistor Matching Ratio | - | - | - |
| Resistor-Ratio-Drift | - | - | - |
| Number of Pins | 8 | 8 | 8 |
| Power Per Element | 63mW | 63mW | 63mW |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | Automotive AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0804, Convex, Long Side Terminals | 0804, Convex, Long Side Terminals | 0804, Convex, Long Side Terminals |
| Supplier Device Package | - | - | 0804 |
| Size / Dimension | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) |
| Height - Seated (Max) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.020" (0.50mm) |
