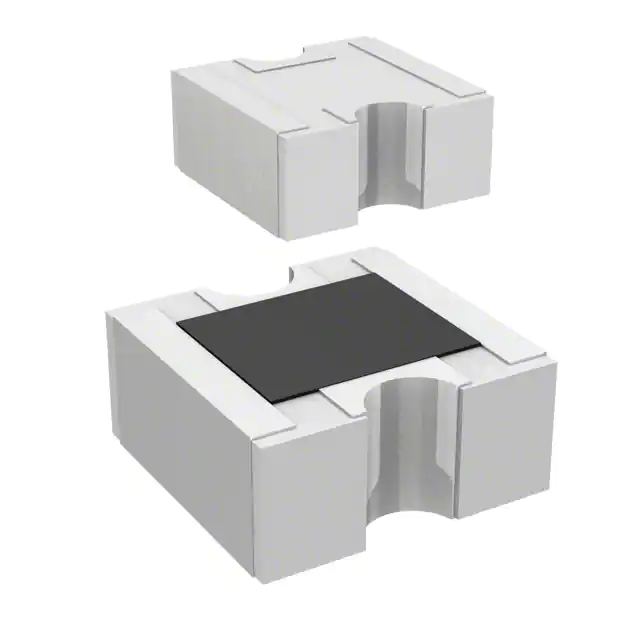

| Part Number | CAY10-124J2LF | CAY10-154J2LF | CAY10-224J2LF | CAY10-104J2LF |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 120k | 150k | 220k | 100k |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Number of Resistors | 2 | 2 | 2 | 2 |
| Resistor Matching Ratio | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - |
| Number of Pins | 4 | 4 | 4 | 4 |
| Power Per Element | 62.5mW | 62.5mW | 62.5mW | 62.5mW |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±200ppm/°C | ±250ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0404 (1010 Metric), Convex | 0404 (1010 Metric), Convex | 0404 (1010 Metric), Convex | 0404 (1010 Metric), Convex |
| Supplier Device Package | - | - | 0404 | - |
| Size / Dimension | 0.039" L x 0.039" W (1.00mm x 1.00mm) | 0.039" L x 0.039" W (1.00mm x 1.00mm) | 0.039" L x 0.039" W (1.00mm x 1.00mm) | 0.039" L x 0.039" W (1.00mm x 1.00mm) |
| Height - Seated (Max) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) |
