Please send RFQ , we will respond immediately.

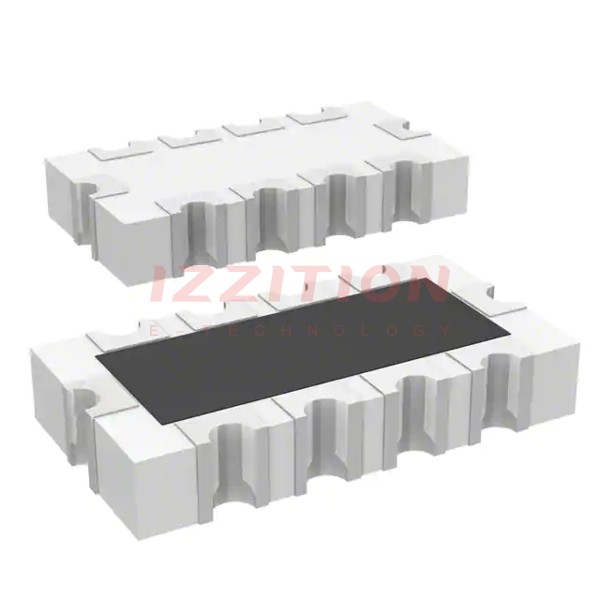

| Part Number | CAT25-820JALF | CAT25-821JALF | CAT25-822JALF | CAT25-823JALF | CAT25-824JALF | CAT25-825JALF | CAT25-120JALF | CAT25-220JALF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Circuit Type | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed |
| Resistance (Ohms) | 82 | 820 | 8.2k | 82k | 820k | 8.2M | 12 | 22 |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Number of Resistors | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Resistor Matching Ratio | - | - | - | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - | - | - | - |
| Number of Pins | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Power Per Element | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1608, Concave, Long Side Terminals | 1608, Concave, Long Side Terminals | 1608, Concave, Long Side Terminals | 1608, Concave, Long Side Terminals | 1608, Concave, Long Side Terminals | 1608, Concave, Long Side Terminals | 1608, Concave, Long Side Terminals | 1608, Concave, Long Side Terminals |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.157" L x 0.083" W (4.00mm x 2.10mm) |
| Height - Seated (Max) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) |
