Please send RFQ , we will respond immediately.

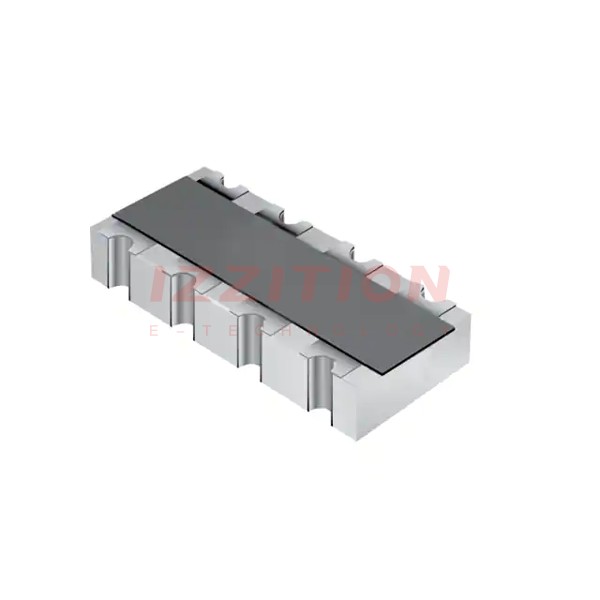

| Part Number | CAT16A-332J4LF | CAT16A-330J4LF | CAT16A-331J4LF |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 3.3k | 33 | 330 |
| Tolerance | ±5% | ±5% | ±5% |
| Number of Resistors | 4 | 4 | 4 |
| Resistor Matching Ratio | - | - | - |
| Resistor-Ratio-Drift | - | - | - |
| Number of Pins | 8 | 8 | 8 |
| Power Per Element | 63mW | 63mW | 63mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave, Long Side Terminals | 1206 (3216 Metric), Concave, Long Side Terminals | 1206 (3216 Metric), Concave, Long Side Terminals |
| Supplier Device Package | 1206 | 1206 | 1206 |
| Size / Dimension | 0.126" L x 0.061" W (3.20mm x 1.55mm) | 0.126" L x 0.061" W (3.20mm x 1.55mm) | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.026" (0.65mm) |
