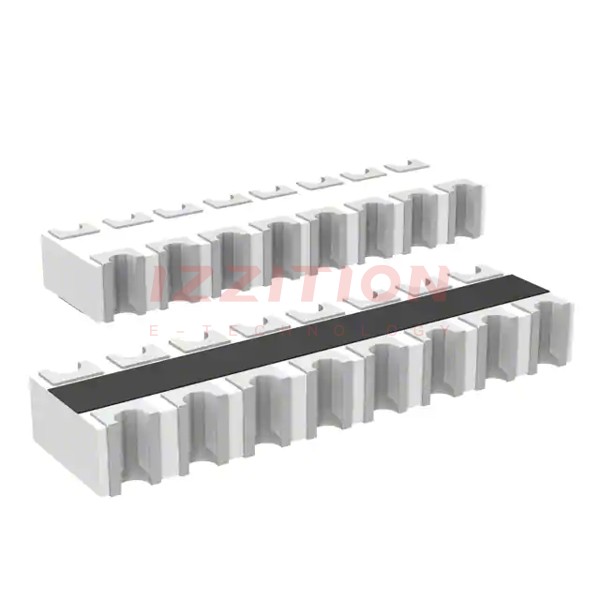

| Part Number | CAT16-3301F8LF | CAT16-3300F8LF | CAT16-3301F4LF |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Active |
| Circuit Type | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 3.3k | 330 | 3.3k |
| Tolerance | ±1% | ±1% | ±1% |
| Number of Resistors | 8 | 8 | 4 |
| Resistor Matching Ratio | - | - | - |
| Resistor-Ratio-Drift | - | - | - |
| Number of Pins | 16 | 16 | 8 |
| Power Per Element | 62.5mW | 62.5mW | 62.5mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2506, Concave, Long Side Terminals | 2506, Concave, Long Side Terminals | 1206 (3216 Metric), Concave, Long Side Terminals |
| Supplier Device Package | 2406 | 2406 | 1206 |
| Size / Dimension | 0.252" L x 0.063" W (6.40mm x 1.60mm) | 0.252" L x 0.063" W (6.40mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.024" (0.60mm) |
