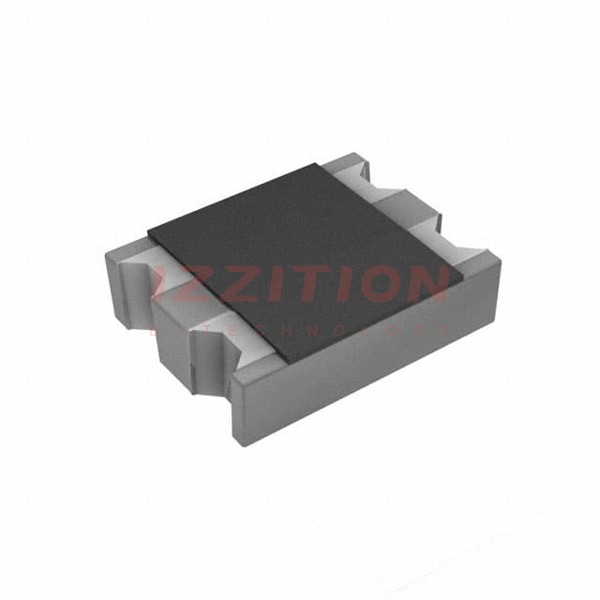

| Part Number | CAT16-101J2LF | CAT16-101J4LF | CAT16-103J2LF | CAT16-102J2LF | CAT16-104J2LF | CAT16-105J2LF | CAT16-121J2LF | CAT16-101J8LF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 100 | 100 | 10k | 1K | 100k | 1M | 120 | 100 |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Number of Resistors | 2 | 4 | 2 | 2 | 2 | 2 | 2 | 8 |
| Resistor Matching Ratio | - | - | - | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - | - | - | - |
| Number of Pins | 4 | 8 | 4 | 4 | 4 | 4 | 4 | 16 |
| Power Per Element | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0606, Concave | 1206 (3216 Metric), Concave, Long Side Terminals | 0606, Concave | 0606, Concave | 0606, Concave | 0606, Concave | 0606, Concave | 2506, Concave, Long Side Terminals |
| Supplier Device Package | 0606 | 1206 | 0606 | 0606 | 0606 | 0606 | 0606 | 2406 |
| Size / Dimension | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.126" L x 0.061" W (3.20mm x 1.55mm) | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.252" L x 0.063" W (6.40mm x 1.60mm) |
| Height - Seated (Max) | 0.030" (0.75mm) | 0.024" (0.60mm) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.030" (0.75mm) |
