Please send RFQ , we will respond immediately.

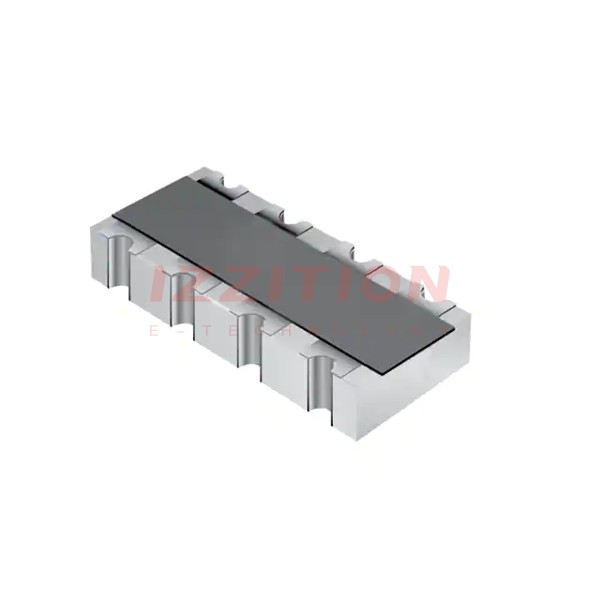

| Part Number | CAT10A-103J2LF | CAT10A-104J2LF | CAT10A-103J4LF | CAT10A-101J2LF |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 10k | 100k | 10k | 100 |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Number of Resistors | 2 | 2 | 4 | 2 |
| Resistor Matching Ratio | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - |
| Number of Pins | 4 | 4 | 8 | 4 |
| Power Per Element | 63mW | 63mW | 63mW | 63mW |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0404 (1010 Metric), Concave | 0404 (1010 Metric), Concave | 0804, Concave, Long Side Terminals | 0404 (1010 Metric), Concave |
| Supplier Device Package | 0404 | 0404 | 0804 | 0404 |
| Size / Dimension | 0.039" L x 0.039" W (1.00mm x 1.00mm) | 0.039" L x 0.039" W (1.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.039" L x 0.039" W (1.00mm x 1.00mm) |
| Height - Seated (Max) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.020" (0.50mm) | 0.016" (0.40mm) |
