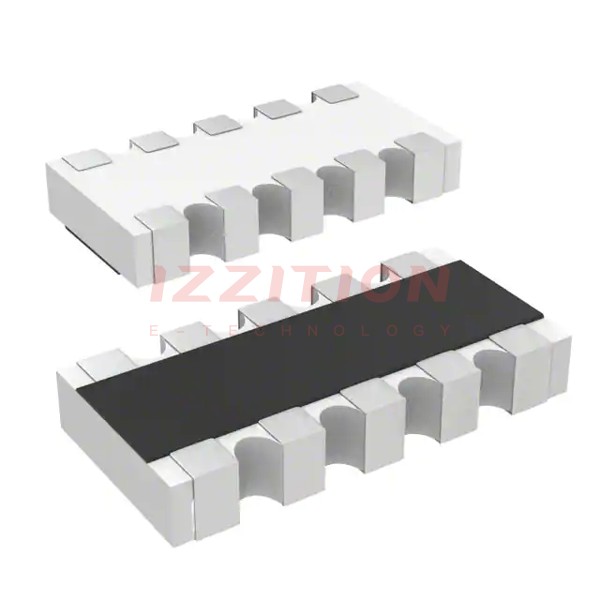

| Part Number | CAT10-430J4LF | CAT10-470J4LF | CAT10-130J4LF | CAT10-330J4LF |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 43 | 47 | 13 | 33 |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Number of Resistors | 4 | 4 | 4 | 4 |
| Resistor Matching Ratio | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - |
| Number of Pins | 8 | 8 | 8 | 8 |
| Power Per Element | 62.5mW | 62.5mW | 62.5mW | 62.5mW |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0804, Concave, Long Side Terminals | 0804, Concave, Long Side Terminals | 0804, Concave, Long Side Terminals | 0804, Concave, Long Side Terminals |
| Supplier Device Package | 0804 | 0804 | 0804 | 0804 |
| Size / Dimension | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
