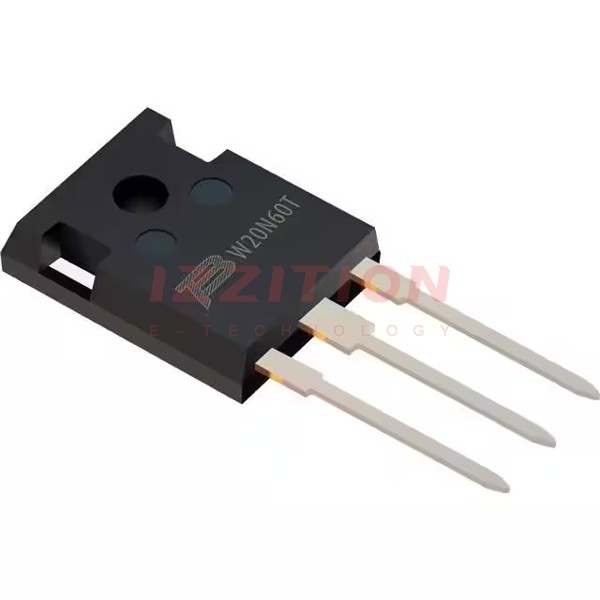

| Part Number | BIDW20N60T | BIDW30N60T |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 40 A | 60 A |
| Current - Collector Pulsed (Icm) | 60 A | 90 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 20A | 1.65V @ 15V, 30A |
| Power - Max | 192 W | 230 W |
| Switching Energy | 1mJ (on), 300µJ (off) | 1.85mJ (on), 450µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 52 nC | 76 nC |
| Td (on/off) @ 25°C | 19ns/48ns | 30ns/67ns |
| Test Condition | 400V, 20A, 10Ohm, 15V | 400V, 30A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 33.7 ns | 40 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 | TO-247 |
