Bourns Inc.-BIDNW30N60H3 - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	60 A
Current - Collector Pulsed (Icm):	120 A
Vce(on) (Max) @ Vge, Ic:	2V @ 15V, 30A
Power - Max:	230 W
Switching Energy:	1.85mJ (on), 450µJ (off)
Input Type:	Standard
Gate Charge:	76 nC
Td (on/off) @ 25°C:	30ns/67ns
Test Condition:	400V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr):	28 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247N-3L

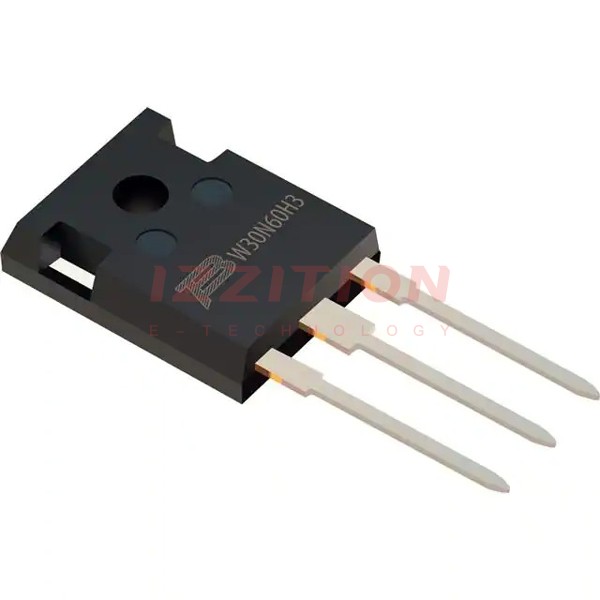

Bourns Inc. BIDNW30N60H3
