Bourns Inc.-BIDD05N60T - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	10 A
Current - Collector Pulsed (Icm):	15 A
Vce(on) (Max) @ Vge, Ic:	2V @ 15V, 5A
Power - Max:	82 W
Switching Energy:	200µJ (on), 70µJ (off)
Input Type:	Standard
Gate Charge:	18.5 nC
Td (on/off) @ 25°C:	7ns/18ns
Test Condition:	400V, 5A, 10Ohm, 15V
Reverse Recovery Time (trr):	40 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:	TO-252 (DPAK)

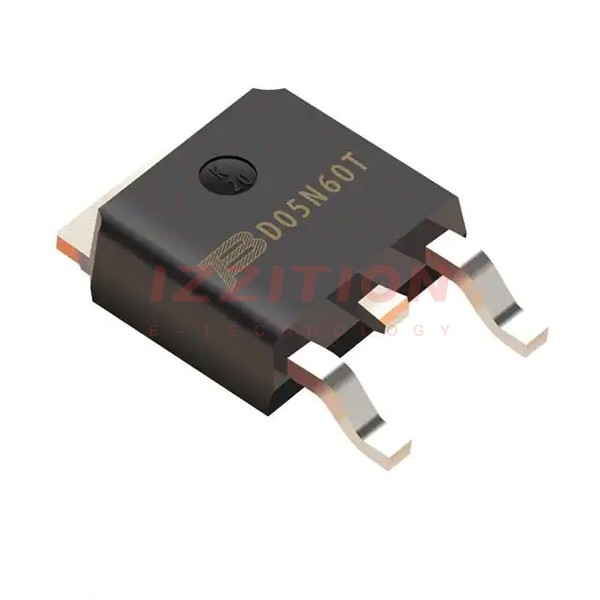

Bourns Inc. BIDD05N60T
