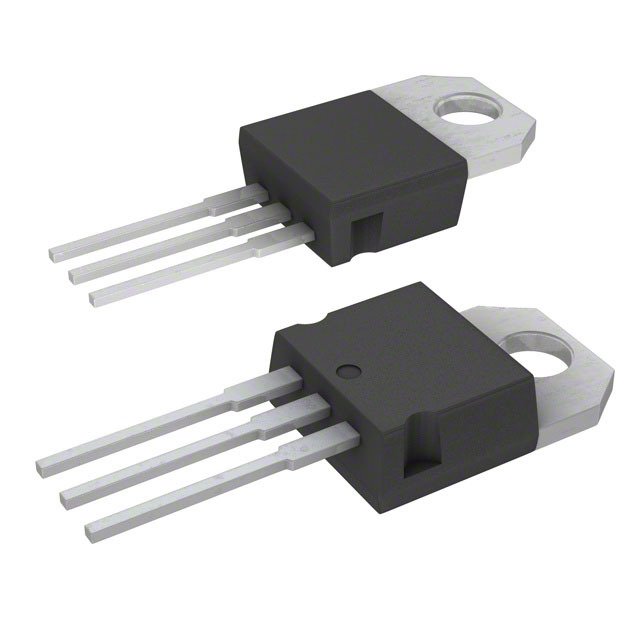

| Part Number | BDW83B-S | BDW83C-S | BDW83D-S | BDW93B-S | BDW84B-S | BDW53B-S | BDW63B-S | BDW73B-S | BDW83-S | BDW83A-S |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN - Darlington | NPN - Darlington | NPN - Darlington | NPN - Darlington | PNP - Darlington | NPN - Darlington | NPN - Darlington | NPN - Darlington | NPN - Darlington | NPN - Darlington |
| Current - Collector (Ic) (Max) | 15 A | 15 A | 15 A | 12 A | 15 A | 4 A | 6 A | 8 A | 15 A | 15 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V | 100 V | 120 V | 80 V | 80 V | 80 V | 80 V | 80 V | 45 V | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 150mA, 15A | 4V @ 150mA, 15A | 4V @ 150mA, 15A | 3V @ 100mA, 10A | 4V @ 150mA, 15A | 4V @ 40mA, 4A | 4V @ 60mA, 6A | 4V @ 80mA, 8A | 4V @ 150mA, 15A | 4V @ 150mA, 15A |
| Current - Collector Cutoff (Max) | 1mA | 1mA | 1mA | 1mA | 1mA | 500µA | 500µA | 500µA | 1mA | 1mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 750 @ 6A, 3V | 750 @ 6A, 3V | 750 @ 6A, 3V | 750 @ 5A, 3V | 750 @ 6A, 3V | 750 @ 1.5A, 3V | 750 @ 2A, 3V | 750 @ 3A, 3V | 750 @ 6A, 3V | 750 @ 6A, 3V |
| Power - Max | 3.5 W | 3.5 W | 3.5 W | 2 W | 3.5 W | 2 W | 2 W | 2 W | 3.5 W | 3.5 W |
| Frequency - Transition | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-218-3 | TO-218-3 | TO-218-3 | TO-220-3 | TO-218-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-218-3 | TO-218-3 |
| Supplier Device Package | SOT-93 | SOT-93 | SOT-93 | TO-220 | SOT-93 | TO-220 | TO-220 | TO-220 | SOT-93 | SOT-93 |
