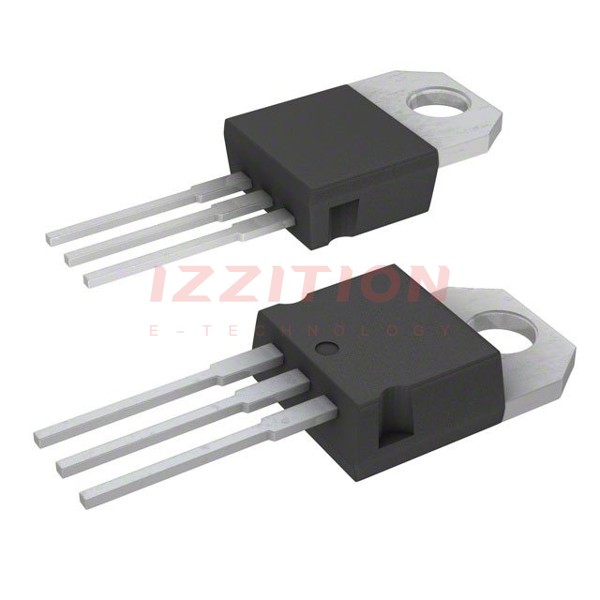

| Part Number | BDV64B-S | BDV65B-S | BDW64B-S | BDV64C-S | BDV64-S | BDV64A-S |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP - Darlington | NPN - Darlington | PNP - Darlington | PNP - Darlington | PNP - Darlington | PNP - Darlington |
| Current - Collector (Ic) (Max) | 12 A | 12 A | 6 A | 12 A | 12 A | 12 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V | 100 V | 80 V | 120 V | 60 V | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 20mA, 5A | 2V @ 20mA, 5A | 4V @ 60mA, 6A | 2V @ 20mA, 5A | 2V @ 20mA, 5A | 2V @ 20mA, 5A |
| Current - Collector Cutoff (Max) | 2mA | 2mA | 500µA | 2mA | 2mA | 2mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 5A, 4V | 1000 @ 5A, 4V | 750 @ 2A, 3V | 1000 @ 5A, 4V | 1000 @ 5A, 4V | 1000 @ 5A, 4V |
| Power - Max | 3.5 W | 3.5 W | 2 W | 3.5 W | 3.5 W | 3.5 W |
| Frequency - Transition | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-218-3 | TO-218-3 | TO-220-3 | TO-218-3 | TO-218-3 | TO-218-3 |
| Supplier Device Package | SOT-93 | SOT-93 | TO-220 | SOT-93 | SOT-93 | SOT-93 |
