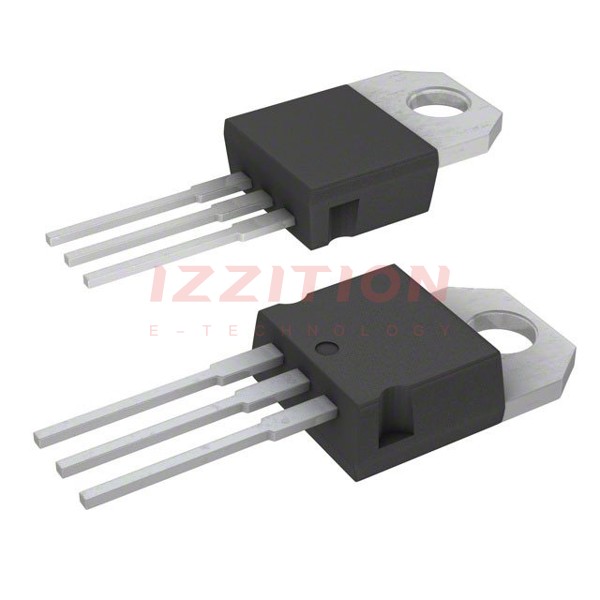

| Part Number | BD745A-S | BD745C-S | BD745B-S | BD746A-S | BD545A-S | BD743A-S | BD745-S |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN | PNP | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 20 A | 20 A | 20 A | 20 A | 15 A | 15 A | 20 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V | 110 V | 80 V | 60 V | 60 V | 60 V | 45 V |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 5A, 20A | 3V @ 5A, 20A | 3V @ 5A, 20A | 3V @ 5A, 20A | 1V @ 2A, 10A | 3V @ 5A, 15A | 3V @ 5A, 20A |
| Current - Collector Cutoff (Max) | 1µA | 100µA | 1µA | 100µA | 700µA | 100µA | 1µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 5A, 4V | 20 @ 5A, 4V | 20 @ 5A, 4V | 20 @ 5A, 4V | 10 @ 10A, 4V | 20 @ 5A, 4V | 20 @ 5A, 4V |
| Power - Max | 3.5 W | 3.5 W | 3.5 W | 3.5 W | 3.5 W | 2 W | 3.5 W |
| Frequency - Transition | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-218-3 | TO-218-3 | TO-218-3 | TO-218-3 | TO-218-3 | TO-220-3 | TO-218-3 |
| Supplier Device Package | SOT-93 | SOT-93 | SOT-93 | SOT-93 | SOT-93 | TO-220 | SOT-93 |
