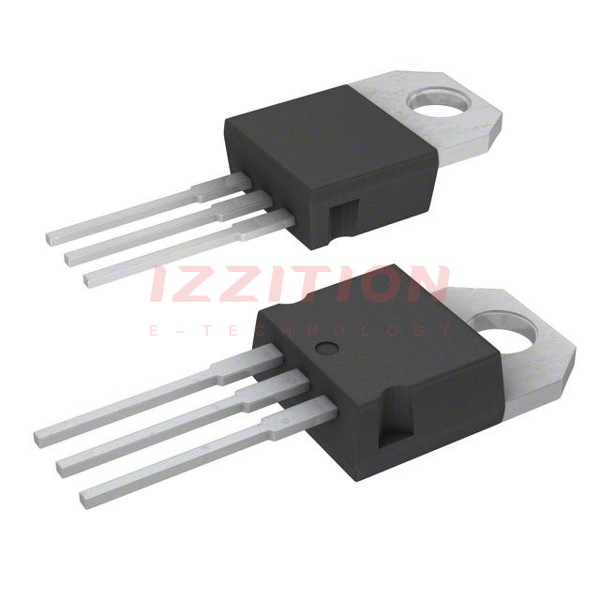

| Part Number | BD250A-S | BD250C-S | BD250B-S | BD250-S |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 25 A | 25 A | 25 A | 25 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V | 100 V | 80 V | 45 V |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 5A, 25A | 4V @ 5A, 25A | 4V @ 5A, 25A | 4V @ 5A, 25A |
| Current - Collector Cutoff (Max) | 1mA | 1mA | 1mA | 1mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 10 @ 15A, 4V | 5 @ 25A, 4V | 10 @ 15A, 4V | 10 @ 15A, 4V |
| Power - Max | 3 W | 3 W | 3 W | 3 W |
| Frequency - Transition | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-218-3 | TO-218-3 | TO-218-3 | TO-218-3 |
| Supplier Device Package | SOT-93 | SOT-93 | SOT-93 | SOT-93 |
