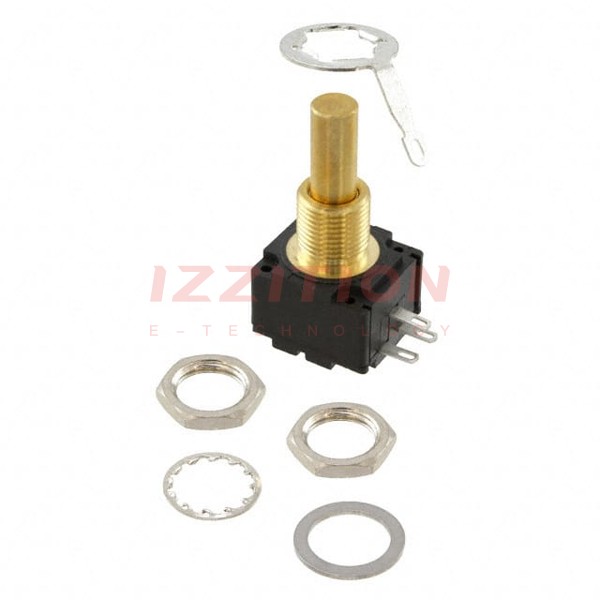

| Part Number | 95A1D-Z28-EA0/301L | 95A1D-Z28-EA0/303L | 95A1D-Z28-EA0/302L | 95A1D-Z28-EA0/321L | 95A1D-Z28-EA0/300L |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Resistance (Ohms) | 250k | 500k | 500k | 300k | 250k |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Built in Switch | None | None | None | None | None |
| Number of Turns | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - |
| Taper | Logarithmic | Logarithmic | Logarithmic | Linear | Logarithmic |
| Number of Gangs | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | User Defined | User Defined | User Defined | User Defined | User Defined |
| Temperature Coefficient | ±1000ppm/°C | ±1000ppm/°C | ±1000ppm/°C | ±1000ppm/°C | ±1000ppm/°C |
| Rotation | 300° | 300° | 300° | 300° | 300° |
| Resistive Material | Conductive Plastic | Conductive Plastic | Conductive Plastic | Conductive Plastic | Conductive Plastic |
| Termination Style | Solder Lug | Solder Lug | Solder Lug | Solder Lug | Solder Lug |
| Actuator Type | Round | Round | Knurled and Slotted | Knurled and Slotted | Knurled and Slotted |
| Actuator Length | 0.875" (22.23mm) | 0.875" (22.23mm) | 0.685" (17.40mm) | 0.685" (17.40mm) | 0.685" (17.40mm) |
| Actuator Diameter | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.235" (5.97mm) | 0.235" (5.97mm) | 0.235" (5.97mm) |
| Bushing Thread | 3/8-32 | 3/8-32 | 3/8-32 | 3/8-32 | 3/8-32 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
