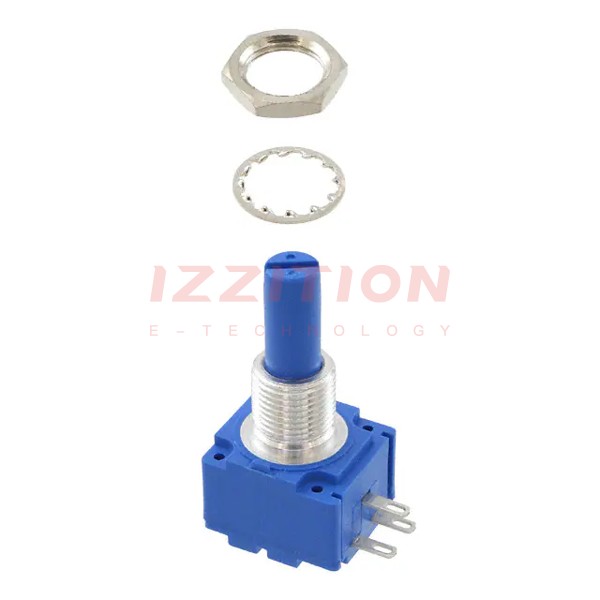

| Part Number | 95A1A-B24-B15 | 95A1A-B24-B15L | 95A1A-B24-A15 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Obsolete |
| Resistance (Ohms) | 10k | 10k | 10k |
| Tolerance | ±20% | ±20% | ±10% |
| Power (Watts) | 1W | 1W | 2W |
| Built in Switch | None | None | None |
| Number of Turns | 1 | 1 | 1 |
| Features | - | - | - |
| Taper | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 |
| Adjustment Type | User Defined | User Defined | User Defined |
| Temperature Coefficient | ±1000ppm/°C | ±1000ppm/°C | ±150ppm/°C |
| Rotation | 300° | 300° | 300° |
| Resistive Material | Conductive Plastic | Conductive Plastic | Cermet |
| Termination Style | Solder Lug | Solder Lug | Solder Lug |
| Actuator Type | Slotted | Slotted | Slotted |
| Actuator Length | 0.750" (19.05mm) | 0.750" (19.05mm) | 0.750" (19.05mm) |
| Actuator Diameter | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Bushing Thread | 3/8-32 | 3/8-32 | 3/8-32 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
