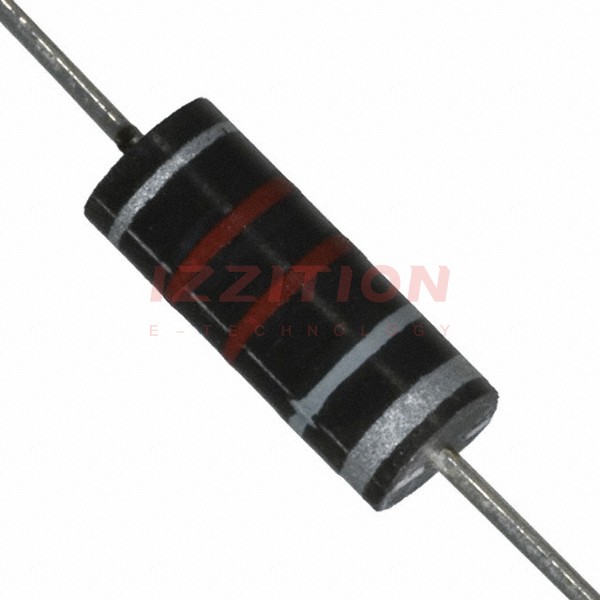

| Part Number | 9250A-825-RC | 9250A-826-RC | 9250-825-RC | 9250A-125-RC | 9250A-225-RC | 9250A-821-RC | 9250A-822-RC | 9250A-823-RC | 9250A-824-RC |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Obsolete | Obsolete | Active | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Drum Core, Wirewound | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 8.2 mH | 82 mH | 8.2 mH | 1.2 mH | 2.2 mH | 820 nH | 8.2 µH | 82 µH | 820 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 26 mA | 11 mA | 26 mA | 60 mA | 50 mA | 370 mA | 250 mA | 180 mA | 80 mA |
| Current - Saturation (Isat) | 15mA | 3.5mA | 15mA | 35mA | 27mA | 370mA | 250mA | 140mA | 45mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 119Ohm Max | 618Ohm Max | 119Ohm Max | 22.1Ohm Max | 33.8Ohm Max | 590mOhm Max | 1.32Ohm Max | 2.44Ohm Max | 13Ohm Max |
| Q @ Freq | 40 @ 250kHz | 21 @ 79kHz | 40 @ 250kHz | 45 @ 250kHz | 45 @ 250kHz | 50 @ 25MHz | 50 @ 7.9MHz | 50 @ 2.5MHz | 60 @ 790kHz |
| Frequency - Self Resonant | 540kHz | 120kHz | 540kHz | 1.5MHz | 970kHz | 180MHz | 50MHz | 10.5MHz | 4.2MHz |
| Ratings | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 250 kHz | 79 kHz | 250 kHz | 250 kHz | 250 kHz | 25 MHz | 7.9 MHz | 2.5 MHz | 790 kHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
