Please send RFQ , we will respond immediately.

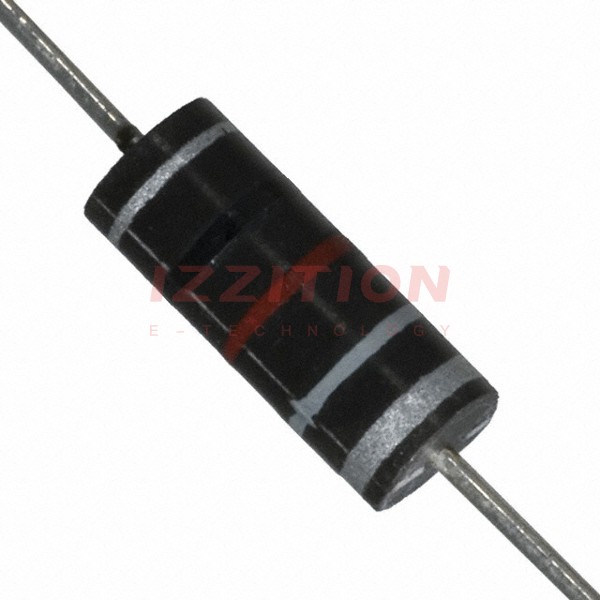

| Part Number | 9250A-823-RC | 9250A-825-RC | 9250A-824-RC | 9250A-826-RC | 9250-823-RC | 9250A-123-RC | 9250A-223-RC | 9250A-821-RC | 9250A-822-RC |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Drum Core, Wirewound | Molded | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 82 µH | 8.2 mH | 820 µH | 82 mH | 82 µH | 12 µH | 22 µH | 820 nH | 8.2 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 180 mA | 26 mA | 80 mA | 11 mA | 180 mA | 200 mA | 290 mA | 370 mA | 250 mA |
| Current - Saturation (Isat) | 140mA | 15mA | 45mA | 3.5mA | 140mA | 200mA | 220mA | 370mA | 250mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 2.44Ohm Max | 119Ohm Max | 13Ohm Max | 618Ohm Max | 2.44Ohm Max | 2Ohm Max | 960mOhm Max | 590mOhm Max | 1.32Ohm Max |
| Q @ Freq | 50 @ 2.5MHz | 40 @ 250kHz | 60 @ 790kHz | 21 @ 79kHz | 50 @ 2.5MHz | 55 @ 2.5MHz | 45 @ 2.5MHz | 50 @ 25MHz | 50 @ 7.9MHz |
| Frequency - Self Resonant | 10.5MHz | 540kHz | 4.2MHz | 120kHz | 10.5MHz | 44MHz | 41MHz | 180MHz | 50MHz |
| Ratings | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 2.5 MHz | 250 kHz | 790 kHz | 79 kHz | 2.5 MHz | 2.5 MHz | 2.5 MHz | 25 MHz | 7.9 MHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
