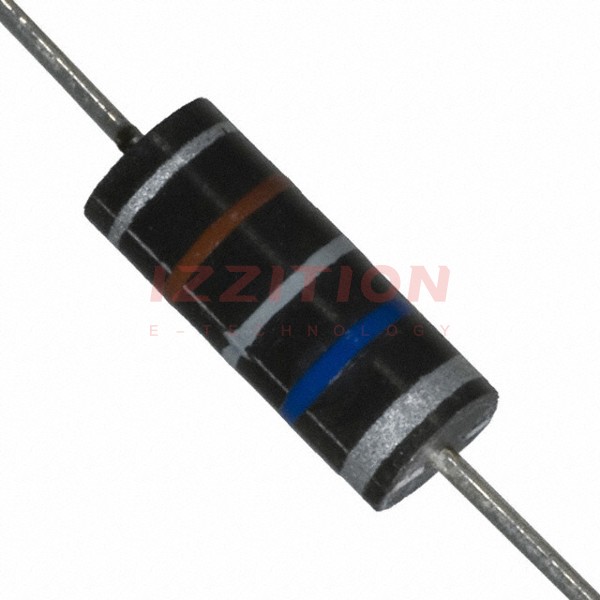

| Part Number | 9250A-684-RC | 9250A-685-RC | 9250A-686-RC | 9250-684-RC | 9250A-184-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Obsolete | Obsolete | Active |
| Type | Molded | Molded | Molded | Drum Core, Wirewound | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 680 µH | 6.8 mH | 68 mH | 680 µH | 180 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 80 mA | 27 mA | 12 mA | 80 mA | 135 mA |
| Current - Saturation (Isat) | 50mA | 16mA | 4mA | 50mA | 85mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 11.8Ohm Max | 111Ohm Max | 580Ohm Max | 11.8Ohm Max | 4.4Ohm Max |
| Q @ Freq | 60 @ 790kHz | 40 @ 250kHz | 23 @ 79kHz | 60 @ 790kHz | 55 @ 790kHz |
| Frequency - Self Resonant | 4.5MHz | 660kHz | 130kHz | 4.5MHz | 8MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 790 kHz | 250 kHz | 79 kHz | 790 kHz | 790 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - |
