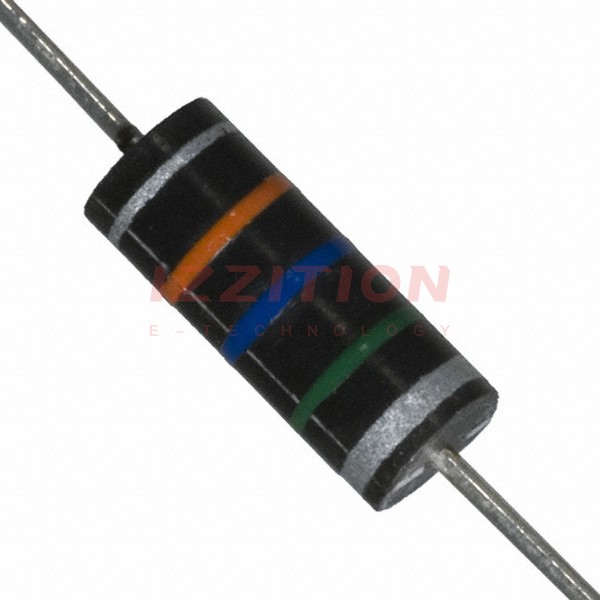

| Part Number | 9250A-566-RC | 9250-566-RC | 9250A-562-RC | 9250A-564-RC |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Active | Active |
| Type | Molded | Drum Core, Wirewound | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 56 mH | 56 mH | 5.6 µH | 560 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 13 mA | 13 mA | 335 mA | 90 mA |
| Current - Saturation (Isat) | 5mA | 5mA | 335mA | 55mA |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 512Ohm Max | 512Ohm Max | 720mOhm Max | 10.5Ohm Max |
| Q @ Freq | 23 @ 79kHz | 23 @ 79kHz | 44 @ 7.9MHz | 60 @ 790kHz |
| Frequency - Self Resonant | 140kHz | 140kHz | 65MHz | 4.7MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 79 kHz | 79 kHz | 7.9 MHz | 790 kHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - |
