Please send RFQ , we will respond immediately.

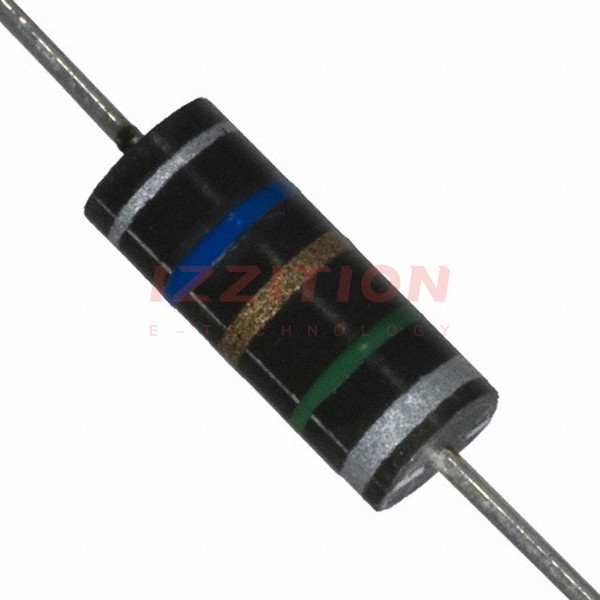

| Part Number | 9250A-562-RC | 9250A-564-RC | 9250A-566-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Obsolete |
| Type | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 5.6 µH | 560 µH | 56 mH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 335 mA | 90 mA | 13 mA |
| Current - Saturation (Isat) | 335mA | 55mA | 5mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 720mOhm Max | 10.5Ohm Max | 512Ohm Max |
| Q @ Freq | 44 @ 7.9MHz | 60 @ 790kHz | 23 @ 79kHz |
| Frequency - Self Resonant | 65MHz | 4.7MHz | 140kHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.9 MHz | 790 kHz | 79 kHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - |
