Please send RFQ , we will respond immediately.

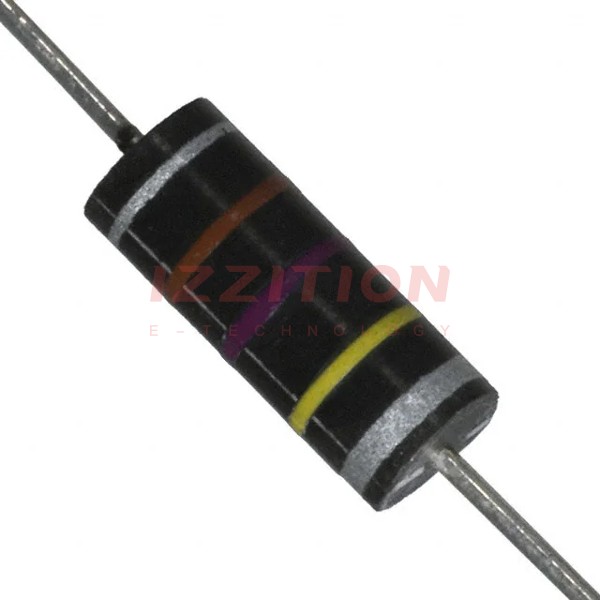

| Part Number | 9250A-474-RC | 9250A-475-RC | 9250A-476-RC | 9250-474-RC | 9250A-274-RC | 9250A-472-RC | 9250A-473-RC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Obsolete | Obsolete | Active | Active | Active |
| Type | Molded | Molded | Molded | Drum Core, Wirewound | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 470 µH | 4.7 mH | 47 mH | 470 µH | 270 µH | 4.7 µH | 47 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 92 mA | 31 mA | 13 mA | 92 mA | 115 mA | 380 mA | 195 mA |
| Current - Saturation (Isat) | 58mA | 19mA | 5.5mA | 58mA | 70mA | 380mA | 175mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 9.5Ohm Max | 81.6Ohm Max | 473Ohm Max | 9.5Ohm Max | 5.8Ohm Max | 550mOhm Max | 2.11Ohm Max |
| Q @ Freq | 60 @ 790kHz | 45 @ 250kHz | 23 @ 79kHz | 60 @ 790kHz | 55 @ 790kHz | 44 @ 7.9MHz | 50 @ 2.5MHz |
| Frequency - Self Resonant | 5.7MHz | 740kHz | 160kHz | 5.7MHz | 7MHz | 70MHz | 27MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 790 kHz | 250 kHz | 79 kHz | 790 kHz | 790 kHz | 7.9 MHz | 2.5 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
