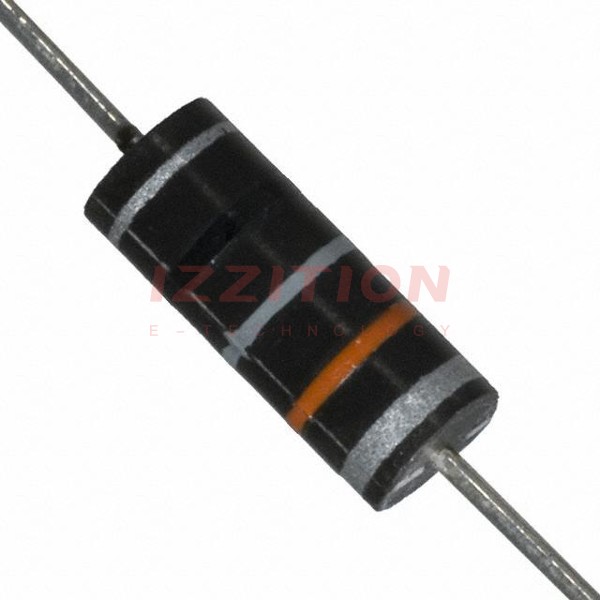

| Part Number | 9250A-393-RC | 9250-393-RC | 9250A-333-RC | 9250A-391-RC | 9250A-392-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Obsolete | Active | Active | Active |
| Type | Molded | Drum Core, Wirewound | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 39 µH | 39 µH | 33 µH | 390 nH | 3.9 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 205 mA | 205 mA | 240 mA | 670 mA | 450 mA |
| Current - Saturation (Isat) | 180mA | 180mA | 190mA | 670mA | 450mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.93Ohm Max | 1.93Ohm Max | 1.37Ohm Max | 180mOhm Max | 400mOhm Max |
| Q @ Freq | 50 @ 2.5MHz | 50 @ 2.5MHz | 45 @ 2.5MHz | 44 @ 25MHz | 44 @ 7.9MHz |
| Frequency - Self Resonant | 29MHz | 29MHz | 34MHz | 250MHz | 75MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 2.5 MHz | 2.5 MHz | 2.5 MHz | 25 MHz | 7.9 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - |
