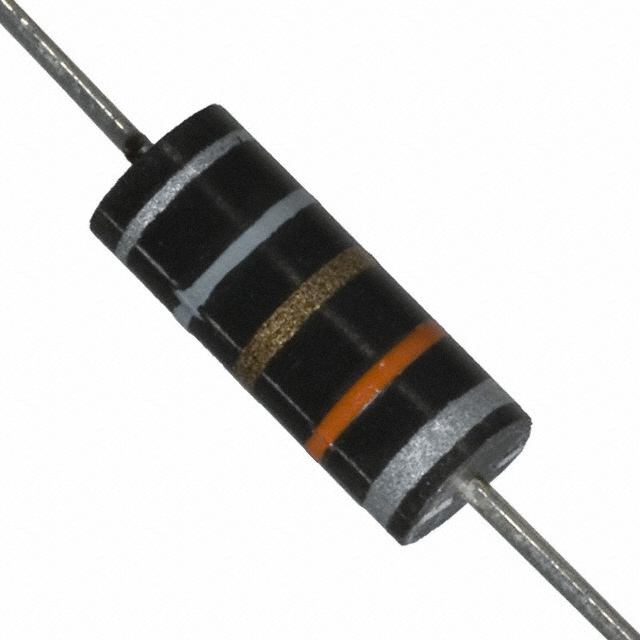

| Part Number | 9250A-392-RC | 9250A-393-RC | 9250-392-RC | 9250A-332-RC | 9250A-391-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Obsolete | Active | Active |
| Type | Molded | Molded | Drum Core, Wirewound | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 3.9 µH | 39 µH | 3.9 µH | 3.3 µH | 390 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 450 mA | 205 mA | 450 mA | 480 mA | 670 mA |
| Current - Saturation (Isat) | 450mA | 180mA | 450mA | 480mA | 670mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 400mOhm Max | 1.93Ohm Max | 400mOhm Max | 350mOhm Max | 180mOhm Max |
| Q @ Freq | 44 @ 7.9MHz | 50 @ 2.5MHz | 44 @ 7.9MHz | 44 @ 7.9MHz | 44 @ 25MHz |
| Frequency - Self Resonant | 75MHz | 29MHz | 75MHz | 85MHz | 250MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.9 MHz | 2.5 MHz | 7.9 MHz | 7.9 MHz | 25 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - |
