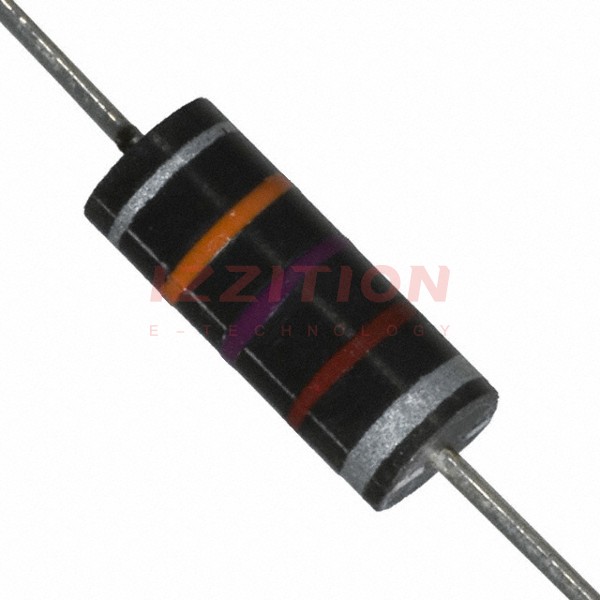

| Part Number | 9250A-276-RC | 9250A-476-RC | 9250A-226-RC | 9250A-273-RC | 9250A-274-RC | 9250A-275-RC |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 27 mH | 47 mH | 22 mH | 27 µH | 270 µH | 2.7 mH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 16 mA | 13 mA | 17 mA | 260 mA | 115 mA | 40 mA |
| Current - Saturation (Isat) | 8mA | 5.5mA | 9mA | 200mA | 70mA | 25mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 308Ohm Max | 473Ohm Max | 274Ohm Max | 1.19Ohm Max | 5.8Ohm Max | 47.3Ohm Max |
| Q @ Freq | 27 @ 79kHz | 23 @ 79kHz | 27 @ 79kHz | 45 @ 2.5MHz | 55 @ 790kHz | 45 @ 250kHz |
| Frequency - Self Resonant | 210kHz | 160kHz | 250kHz | 38MHz | 7MHz | 920kHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 79 kHz | 79 kHz | 79 kHz | 2.5 MHz | 790 kHz | 250 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
