Please send RFQ , we will respond immediately.

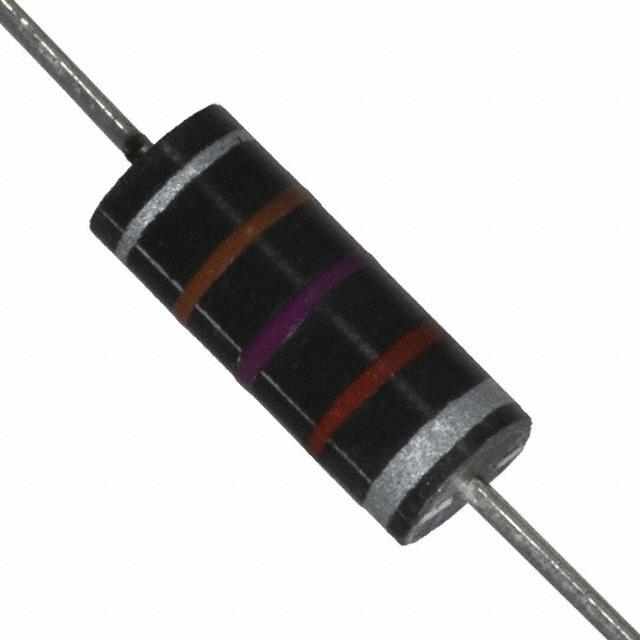

| Part Number | 9250A-274-TR-RC | 9250A-224-TR-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Molded | Molded |
| Material - Core | Ferrite | Ferrite |
| Inductance | 270 µH | 220 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 115 mA | 120 mA |
| Current - Saturation (Isat) | 70mA | 80mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 5.8Ohm Max | 5Ohm Max |
| Q @ Freq | 55 @ 790kHz | 55 @ 790kHz |
| Frequency - Self Resonant | 7MHz | 7.5MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 790 kHz | 790 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial | Axial |
| Supplier Device Package | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - |
