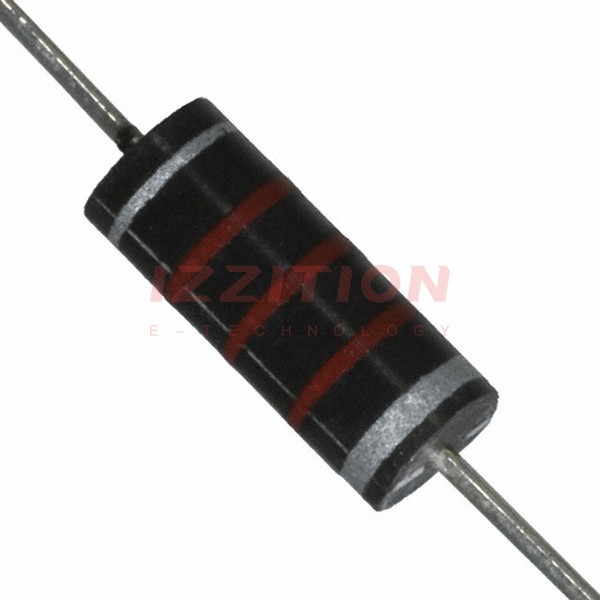

| Part Number | 9250A-225-RC | 9250A-825-RC | 9250A-275-RC | 9250A-226-RC | 9250A-125-RC | 9250A-221-RC | 9250A-222-RC | 9250A-223-RC | 9250A-224-RC |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 2.2 mH | 8.2 mH | 2.7 mH | 22 mH | 1.2 mH | 220 nH | 2.2 µH | 22 µH | 220 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 50 mA | 26 mA | 40 mA | 17 mA | 60 mA | 1.1 A | 650 mA | 290 mA | 125 mA |
| Current - Saturation (Isat) | 27mA | 15mA | 25mA | 9mA | 35mA | 1.1A | 650mA | 220mA | 80mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 33.8Ohm Max | 119Ohm Max | 47.3Ohm Max | 274Ohm Max | 22.1Ohm Max | 67mOhm Max | 190mOhm Max | 960mOhm Max | 5Ohm Max |
| Q @ Freq | 45 @ 250kHz | 40 @ 250kHz | 45 @ 250kHz | 27 @ 79kHz | 45 @ 250kHz | 49 @ 25MHz | 44 @ 7.9MHz | 45 @ 2.5MHz | 55 @ 790kHz |
| Frequency - Self Resonant | 970kHz | 540kHz | 920kHz | 250kHz | 1.5MHz | 250MHz | 100MHz | 41MHz | 7.5MHz |
| Ratings | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 250 kHz | 250 kHz | 250 kHz | 79 kHz | 250 kHz | 25 MHz | 7.9 MHz | 2.5 MHz | 790 kHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
