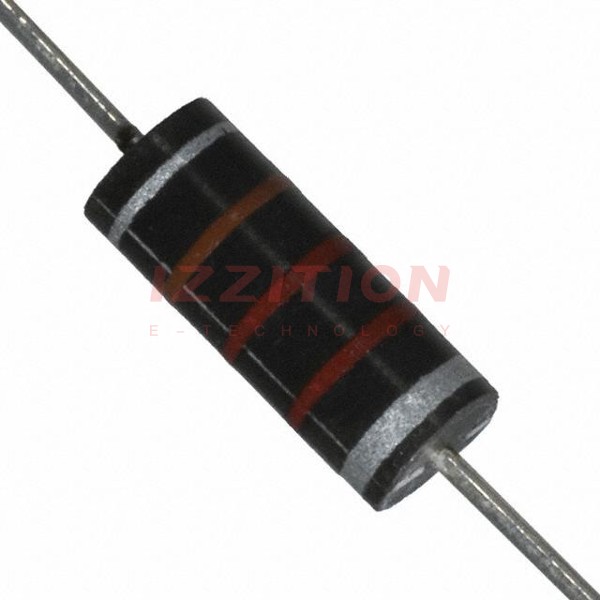

| Part Number | 9250A-224-RC | 9250A-274-RC | 9250A-225-RC | 9250A-824-RC | 9250A-226-RC | 9250A-221-RC | 9250A-222-RC | 9250A-223-RC |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 220 µH | 270 µH | 2.2 mH | 820 µH | 22 mH | 220 nH | 2.2 µH | 22 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 125 mA | 115 mA | 50 mA | 80 mA | 17 mA | 1.1 A | 650 mA | 290 mA |
| Current - Saturation (Isat) | 80mA | 70mA | 27mA | 45mA | 9mA | 1.1A | 650mA | 220mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 5Ohm Max | 5.8Ohm Max | 33.8Ohm Max | 13Ohm Max | 274Ohm Max | 67mOhm Max | 190mOhm Max | 960mOhm Max |
| Q @ Freq | 55 @ 790kHz | 55 @ 790kHz | 45 @ 250kHz | 60 @ 790kHz | 27 @ 79kHz | 49 @ 25MHz | 44 @ 7.9MHz | 45 @ 2.5MHz |
| Frequency - Self Resonant | 7.5MHz | 7MHz | 970kHz | 4.2MHz | 250kHz | 250MHz | 100MHz | 41MHz |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 790 kHz | 790 kHz | 250 kHz | 790 kHz | 79 kHz | 25 MHz | 7.9 MHz | 2.5 MHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
