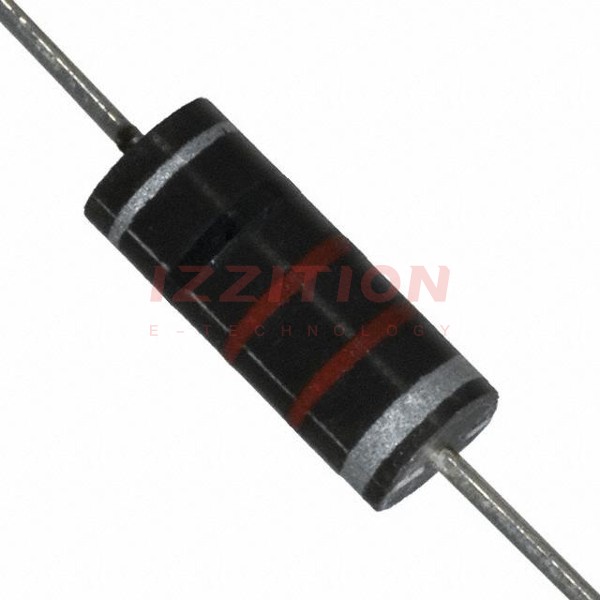

| Part Number | 9250A-223-RC | 9250A-224-RC | 9250A-225-RC | 9250A-273-RC | 9250A-823-RC | 9250A-226-RC | 9250A-123-RC | 9250A-221-RC | 9250A-222-RC |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 220 µH | 2.2 mH | 27 µH | 82 µH | 22 mH | 12 µH | 220 nH | 2.2 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 290 mA | 125 mA | 50 mA | 260 mA | 180 mA | 17 mA | 200 mA | 1.1 A | 650 mA |
| Current - Saturation (Isat) | 220mA | 80mA | 27mA | 200mA | 140mA | 9mA | 200mA | 1.1A | 650mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 960mOhm Max | 5Ohm Max | 33.8Ohm Max | 1.19Ohm Max | 2.44Ohm Max | 274Ohm Max | 2Ohm Max | 67mOhm Max | 190mOhm Max |
| Q @ Freq | 45 @ 2.5MHz | 55 @ 790kHz | 45 @ 250kHz | 45 @ 2.5MHz | 50 @ 2.5MHz | 27 @ 79kHz | 55 @ 2.5MHz | 49 @ 25MHz | 44 @ 7.9MHz |
| Frequency - Self Resonant | 41MHz | 7.5MHz | 970kHz | 38MHz | 10.5MHz | 250kHz | 44MHz | 250MHz | 100MHz |
| Ratings | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 2.5 MHz | 790 kHz | 250 kHz | 2.5 MHz | 2.5 MHz | 79 kHz | 2.5 MHz | 25 MHz | 7.9 MHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
